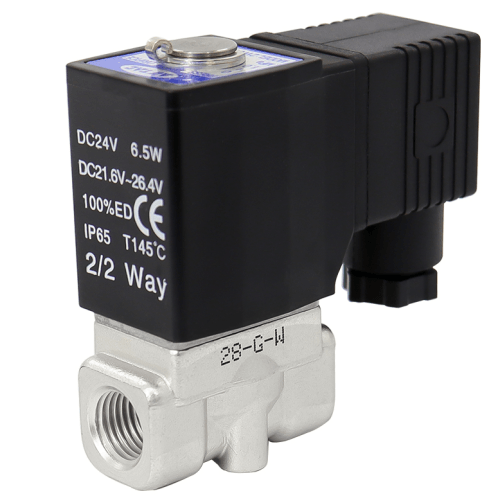

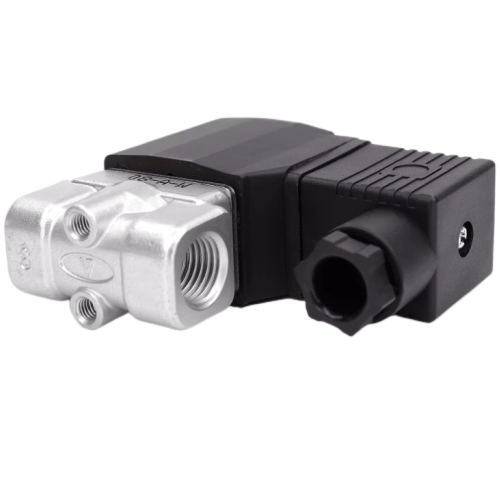

Airtac 2SH High Pressure Solenoid Valve 2SH05010F
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05010F High-Pressure Solenoid Valve Specifications
- Model: 2SH05010F
- Series: 2SH High-Pressure Series
- Valve type: 5/2-way (double solenoid)
- Operation: Pilot-operated with manual override
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.5–16 MPa (7–2320 PSI)
- Max pressure: 25 MPa (instantaneous)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: DC: 4.5W / AC: 5.5VA
- Body material: Stainless steel (SUS304)
- Seal material: HNBR/Nitrile rubber (-20℃ to 120℃)
- Flow coefficient (Cv): 1.8
- Response time: ≤20ms (at 20℃)
- Ambient temperature: -10℃ to 80℃
- Protection rating: IP67 (dust/water resistant)
- Weight: ~450g (without connector)
- Dimensions: 60mm(L) × 55mm(W) × 90mm(H)
- Cycle life: ≥20 million operations
- Certification: CE, RoHS compliant
High-performance solenoid valve engineered for extreme pressure environments, featuring a reinforced stainless steel body and rapid switching capability. The dual-coil design enables latching control functionality. Includes manual override for emergency operation and status verification. Requires 10μm filtration for optimal performance.
- Hydraulic pressurization systems
- CNC machine tool clamping mechanisms
- High-pressure testing equipment
- Plastic injection molding machines
- Compressed natural gas (CNG) control systems
- Industrial robot end-effector actuators
Installation guidelines:
Maintain horizontal mounting orientation for optimal drainage.
Use anti-vibration mounts in high-shock environments.
Allow 15mm clearance around valve body for heat dissipation.
Apply thread sealant (PTFE tape) on NPT ports.
| Property | Property Value |
|---|---|
| sku | 2SH05010F |
| Port Size | PT3/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
