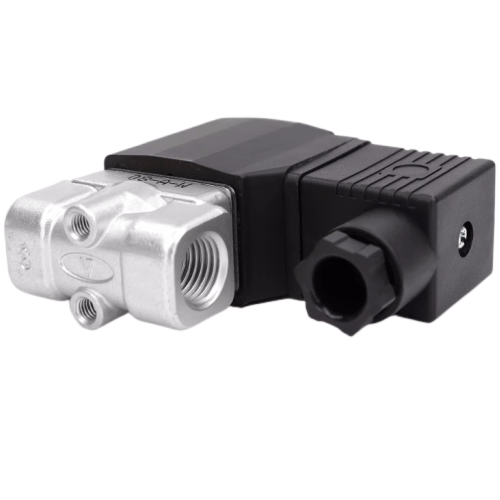

Airtac 2SH High Pressure Solenoid Valve 2SH05015A
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05015A High-Pressure Solenoid Valve Specifications
- Model: 2SH05015A
- Type: 2-position, 5-port direct-acting (high-pressure series)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.1–16 MPa (145–2320 PSI)
- Maximum pressure rating: 20 MPa (2900 PSI) intermittent
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.5W (DC), 4.5VA (AC)
- Response time: ≤15ms (at 20℃ with rated voltage)
- Seal material: FKM fluorocarbon rubber
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Fluid compatibility: Compressed air (ISO 8573-1:2010 Class 3.4.3)
- Protection rating: IP67 (dust-tight and protected against immersion)
- Weight: 450g ±5% (without connector)
- Dimensions: 76mm(L) × 42mm(W) × 62mm(H)
- Port thread depth: 12mm (with 1.5mm pitch)
- Flow coefficient (Cv): 1.8 (at 7 bar)
Industrial-grade high-pressure solenoid valve engineered for demanding pneumatic systems requiring precise control under extreme pressures. Features an aluminum alloy body with hard-anodized surface treatment and triple-layered epoxy coating for corrosion resistance. The direct-acting design ensures reliable operation without minimum pressure requirements.
- Hydraulic system pilot controls
- High-pressure pneumatic presses (up to 200-ton capacity)
- CNC machine tool clamping mechanisms
- Industrial cleaning equipment (water blast systems)
- Plastic injection molding machines
- Test bench pressure regulation systems
Installation guidelines:
Always install pressure regulators upstream and use locknuts with 18-22 N·m torque.
For continuous operation above 12 MPa, implement forced-air cooling (≥0.3m/s airflow).
Replace seals every 500,000 cycles in high-load applications.
- Manual override button for system debugging
- Surge-protected coil with thermal Class F (155℃) insulation
- Vibration resistance: 10–55Hz with 1.5mm amplitude
- Compatible with vacuum applications (down to -100kPa)
| Property | Property Value |
|---|---|
| sku | 2SH05015A |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
