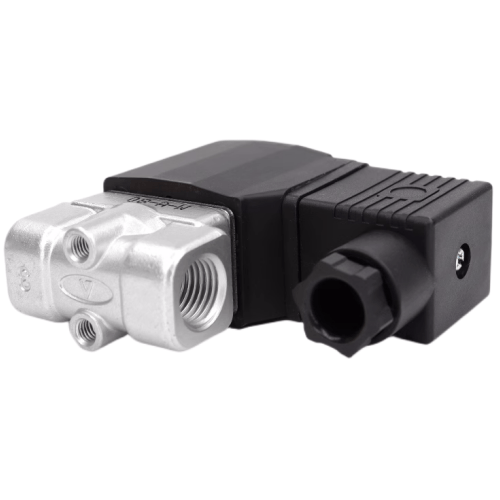

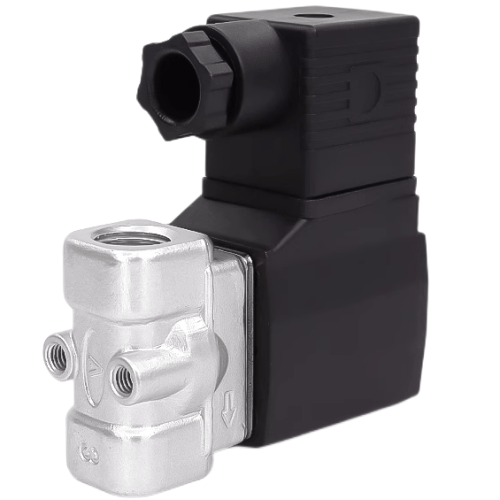

Airtac 2SX Fluid Control Valve 2SX03006B
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
AirTAC 2SX Series Fluid Control Valve 2SX03006B Technical Specifications
- Model: 2SX03006B
- Type: 2-position 3-way normally closed (direct-acting)
- Port configuration: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow coefficient (Cv): 0.18
- Max operating frequency: 5 cycles/second
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: Heat-resistant NBR (Nitrile) -30℃ to 100℃
- Valve body material: Aluminum alloy (anodized finish)
- Weight: 180g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 60mm(H)
- Protection class: IP67 (dust-tight & protected against temporary immersion)
- Ambient temperature: -20℃ to 60℃ (non-freezing)
- Power consumption: ≤2.2W (DC), ≤3.5VA (AC)
- Port thread depth: 9mm
High-precision miniaturized fluid control valve featuring dual-chamber sealing technology for zero-leakage performance. The optimized magnetic circuit design ensures stable operation under voltage fluctuations (±10%). Includes built-in manual override for system debugging. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Precision pneumatic clamping systems in CNC machinery
- Medical device sterilization equipment gas circuits
- Beverage filling line flow control
- Semiconductor wafer handling vacuum/pressure switching
- Textile machinery air-jet control
Installation guidelines:
Mount with torque ≤1.5N·m using M4 screws. Maintain minimum 15mm
clearance below valve for heat dissipation. Lubricate seals with
ISO VG32 turbine oil if used in high-cycle applications (>3Hz).
| Property | Property Value |
|---|---|
| sku | 2SX03006B |
| Port Size | PT1/8 |
| Flow Aperture | 1.5mm |
| Coil Voltage | DC24V |
