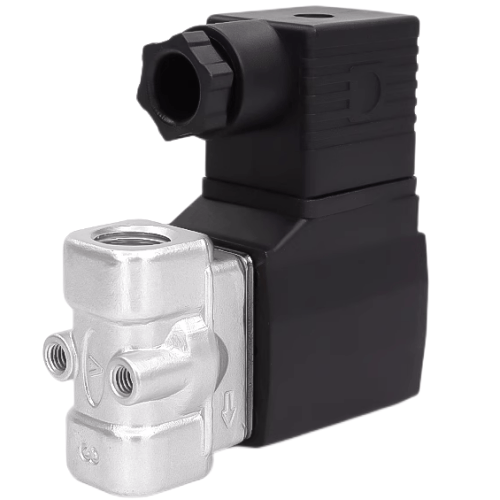

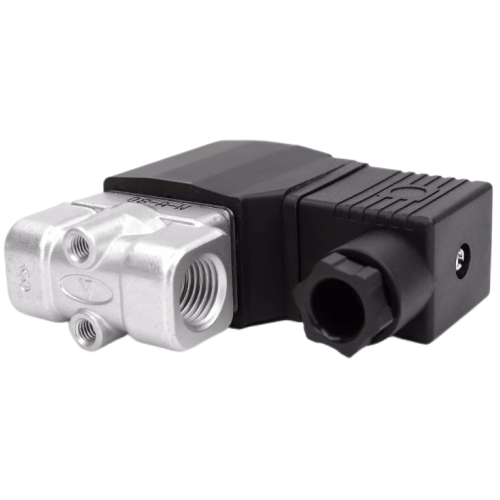

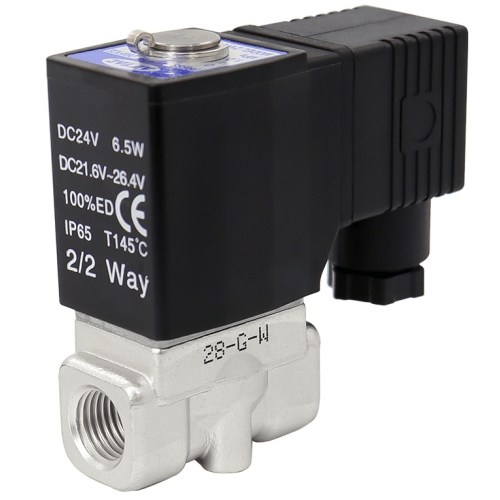

Airtac 2SX Fluid Control Valve 2SX05010BI
$61.63
Regular price
$69.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2SX05010BI
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting, normally closed 2-port 2-position solenoid valve with rapid and responsive switching;
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
Installation requirements:
Mount with vibration-damping brackets in high-shock environments.
Use 5μm filtration (ISO 8573-1:2010 Class 4) with automatic drain.
For vertical mounting, position coils above valve body to prevent debris accumulation.
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
AirTAC 2SX05010BI Fluid Control Valve Specifications
- Model: 2SX05010BI
- Type: 5/2-way double solenoid pilot-operated valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Maximum flow rate: 750 L/min (ANR)
- Response time: ≤20ms (exhaust to actuation)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 80℃ (with intermittent 100℃ tolerance)
- Weight: 0.68 kg (1.5 lbs)
- Dimensions: 58mm(L) × 42mm(W) × 105mm(H)
- Port thread depth: 12mm (minimum engagement)
- Protection rating: IP67 (dustproof/water immersion resistant)
- Expected service life: 10 million cycles (under rated conditions)
High-flow bistable valve with dual coil redundancy, featuring manual override and position indication window. The hardened aluminum body with chromed brass core resists hydraulic shock in pulsating systems. Designed for systems requiring maintained position during power loss.
Industrial Applications:
- Plastic injection molding machine clamp control
- Automated assembly line cylinder sequencing
- Textile machinery pneumatic circuit switching
- Semiconductor handling vacuum/pressure systems
- Food processing dual-pressure regulation
Installation requirements:
Mount with vibration-damping brackets in high-shock environments.
Use 5μm filtration (ISO 8573-1:2010 Class 4) with automatic drain.
For vertical mounting, position coils above valve body to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | 2SX05010BI |
| Port Size | PT3/8 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC24V |
