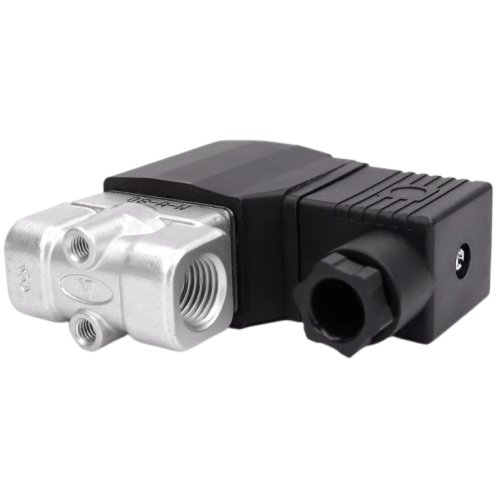

Airtac 2SX Fluid Control Valve 2SX05015BI
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
AirTAC 2SX05015BI Fluid Control Valve Technical Details
- Model: 2SX05015BI
- Type: 5-port 2-position (5/2-way) solenoid valve with bi-stable latching
- Port size: G1/8 (ISO228 standard)
- Thread specification: Rc1/8 (PT1/8) internal threads
- Operating pressure range: 0.1–1.0 MPa (14.5–145 PSI)
- Max flow rate: 850 l/min (ANR) at 0.5 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: 2.5W (DC), 4.5VA (AC)
- Weight: 420g ±5% (including coil)
- Dimensions: 54mm(W) × 46mm(H) × 102mm(L)
- Seal material: Heat-resistant NBR (Nitrile) for -20℃ to 80℃ operation
- Response time: ≤15ms (excitation), ≤20ms (reset)
- Protection class: IP67 (coil), IP40 (valve body)
- Port alignment: ISO 5599-1 standard (compliant with CETOP RP52P)
High-flow proportional control valve with dual-coil latching mechanism, engineered for energy-efficient pneumatic systems requiring position memory. Features zero power hold function after actuation and brass body with hard anodized aluminum sleeve. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality (max 40mg/m³ oil content).
- Robotic gripper pressure regulation in assembly lines
- Plastic injection molding machine clamp control
- Textile machinery air circuit switching
- Semiconductor wafer handling vacuum/pressure systems
- Automated test equipment with position retention requirements
Installation protocol:
Mount with 15mm clearance minimum from adjacent components for heat dissipation.
Use M5 mounting screws (max torque 1.2N·m). Lubricate seals with ISO VG32 turbine oil
if stored over 12 months. Manual override available via recessed pushbutton (requires 3mm hex tool).
| Property | Property Value |
|---|---|
| sku | 2SX05015BI |
| Port Size | PT 1/2 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC24V |
