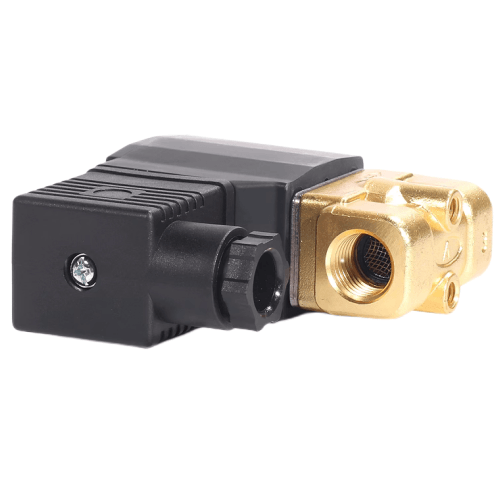

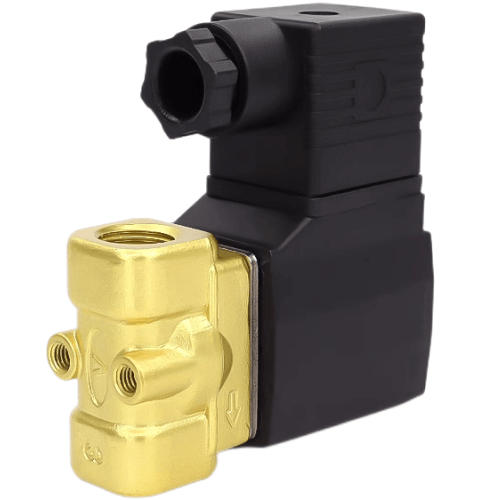

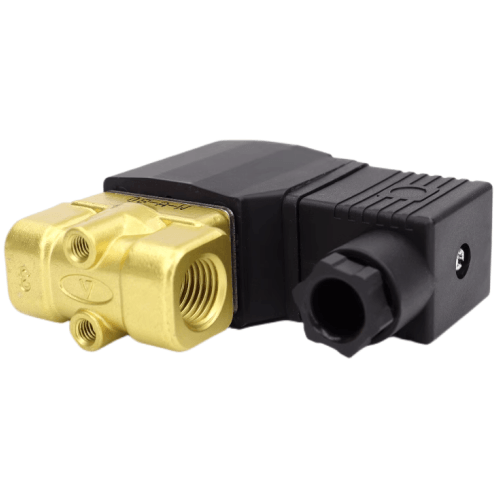

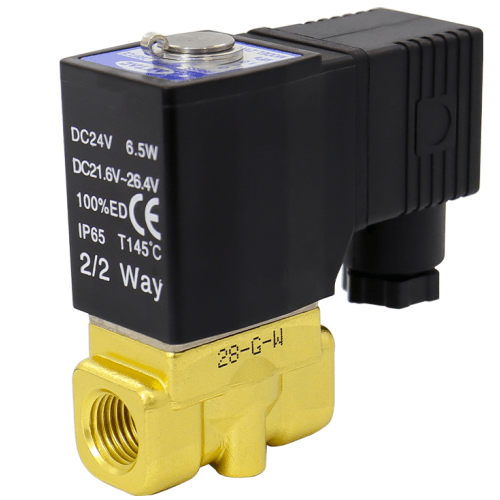

Airtac 2WX Fluid Solenoid Valve 2WX03008AI
$40.70
Regular price
$48.20
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2WX03008AI
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting normally closed 2-way, 2-position solenoid valve featuring rapid switching and high responsiveness;
2. Wide pressure range adaptability with selectable variants: Ultra-high pressure (X), High pressure (H), Standard, High flow (L), and Extra-high flow (T);
3. Compact design with minimal footprint, lightweight construction, and simplified installation/maintenance;
4. Brass valve body with B-class thermal-rated coils. Standard FPMF (Fluorine Rubber) seals ensure multi-media compatibility. Custom seal materials available upon request – consult our technical department;
5. IP65-rated coil protection. Electrical connection options: Direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: Airtac | Series: 2WX
Installation protocol:
Maintain horizontal mounting position (±15° tolerance) with arrow direction matching airflow.
Use copper-free anti-seize compound on threads. Cycle limit: 1 million operations @ 1Hz max.
Requires surge protection circuit for AC models.
2. Wide pressure range adaptability with selectable variants: Ultra-high pressure (X), High pressure (H), Standard, High flow (L), and Extra-high flow (T);
3. Compact design with minimal footprint, lightweight construction, and simplified installation/maintenance;
4. Brass valve body with B-class thermal-rated coils. Standard FPMF (Fluorine Rubber) seals ensure multi-media compatibility. Custom seal materials available upon request – consult our technical department;
5. IP65-rated coil protection. Electrical connection options: Direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: Airtac | Series: 2WX
AirTAC 2WX03008AI Fluid Solenoid Valve Specifications
- Model: 2WX030-08AI
- Type: 2-position 3-way normally closed (direct-acting)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Voltage options: DC24V (±10%), AC220V (±10% 50/60Hz)
- Flow coefficient (Cv): 0.8
- Response time: ≤15ms (on/off)
- Weight: 320g ±5g
- Dimensions: 50mm(L) × 42mm(W) × 70mm(H)
- Seal material: FKM (Viton® equivalent) for chemical resistance
- Temperature range: -10℃ to 80℃ (with intermittent peak at 120℃ for ≤10min)
- Power consumption: 2.5W (DC24V), 4.5VA (AC220V)
- Protection rating: IP67 (dust-tight and protected against temporary immersion)
- Port thread depth: 12mm (minimum engagement required)
High-speed precision valve with corrosion-resistant brass body and anti-vibration design. Features manual override button for system debugging and zero pressure differential operation capability. Requires ISO 8573-1:2010 Class 3.4.2 compressed air quality (max 5μm particles).
Industrial Applications:
- Pneumatic cylinder control in food processing lines (FDA-compliant seals)
- Vacuum generator switching for pharmaceutical packaging
- Coolant flow control in CNC machining centers
- Beverage dispenser valve sequencing
- Automotive tire inflation systems
Installation protocol:
Maintain horizontal mounting position (±15° tolerance) with arrow direction matching airflow.
Use copper-free anti-seize compound on threads. Cycle limit: 1 million operations @ 1Hz max.
Requires surge protection circuit for AC models.
Service Advisory:
Replace seals every 5 million cycles or 2 years (whichever comes first) under continuous operation.
Not compatible with phosphate ester-based lubricants - use ISO VG32 turbine oil only.
| Property | Property Value |
|---|---|
| sku | 2WX03008AI |
| Port Size | PT1/4 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC220V |
