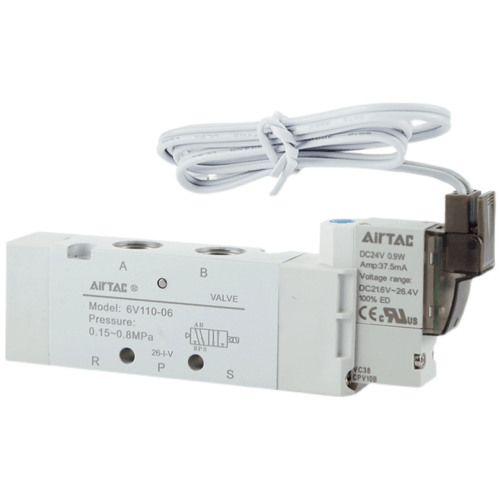

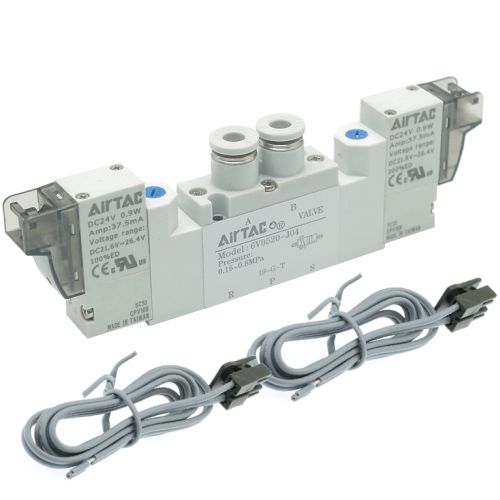

Airtac 6V Solenoid Valve 6V220J10B050
2、Internal venting structure collects pilot air for centralized exhaust through R/S ports;
3、High-pressure die-cast aluminum alloy body features precision-machined inner bore for optimized flow path geometry and enhanced flow capacity;

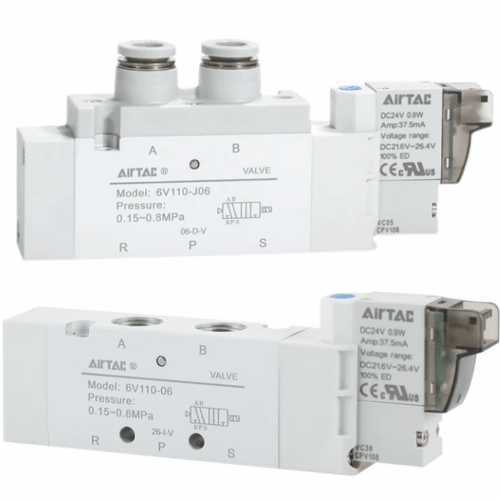

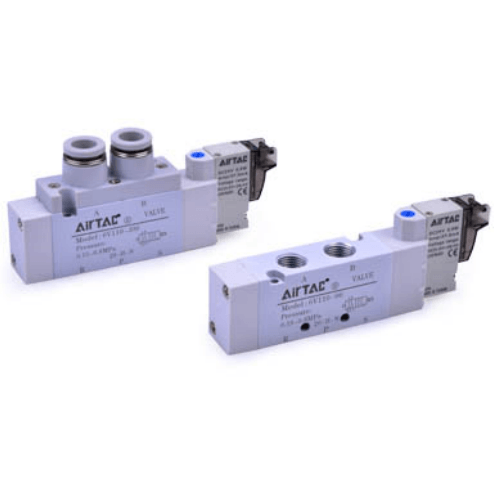

4、Available in threaded and quick-insertion port types, compatible with base-mounted valve manifolds for space-efficient installation.
Category: Solenoid Valves | Brand: AIRTC | Series: 6V
AirTAC 6V220J10B050 Solenoid Valve Specifications
- Model: 6V220J10B050
- Type: 5/2-way monostable (pilot-operated)
- Port size: PT1/4 (G1/4 ISO228-1 standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Response time: ≤20ms (exhaust to action)
- Flow coefficient (Cv): 1.8
- Seal material: HNBR rubber (hydrogenated nitrile)
- Temperature range: -5℃ to 80℃ (with intermittent peaks up to 100℃ for ≤5 mins)
- Power consumption: ≤2.5W (AC) / ≤3.5W (DC)
- Protection rating: IP65 (dust-tight & protected against water jets)
- Weight: 300g ±5% (including coil)
- Dimensions: 65mm(L) × 40mm(W) × 90mm(H) (body only, exclude fittings)
- Port thread depth: 12mm (parallel threads with O-ring seal)
- Maximum cycle rate: 5Hz (300 cycles/minute)
High-flow directional control valve with double electrical interlock protection, designed for industrial automation requiring bi-directional actuator control. Features copper-free aluminum alloy body with hard anodized finish for chemical resistance. Includes manual override button for system debugging. Requires ISO 8573-1:2010 Class 3 compressed air (max 50mg/m³ oil content).
- Pneumatic cylinder reversing circuits
- Rotary actuator control in packaging lines
- Clamping mechanisms in CNC machinery
- Material handling systems with double-acting cylinders
- Automated assembly line sequencing
Installation note:
Mount horizontally with pilot tube facing downward. Use flexible tubing for the first 150mm of connections to reduce vibration transfer. Minimum 12V voltage fluctuation tolerance - use stabilized power supply for AC models.
- Lubrication: Every 5 million cycles (use ISO VG32 turbine oil)
- Seal replacement: 10 million cycles or 3 years (whichever comes first)
- Coil insulation test: Annual megger test at 500VDC (min 10MΩ)
| Property | Property Value |
|---|---|
| sku | 6V220J10B050 |
| Port Size | PT3/8 |
| Standard Voltage | DC24V |
