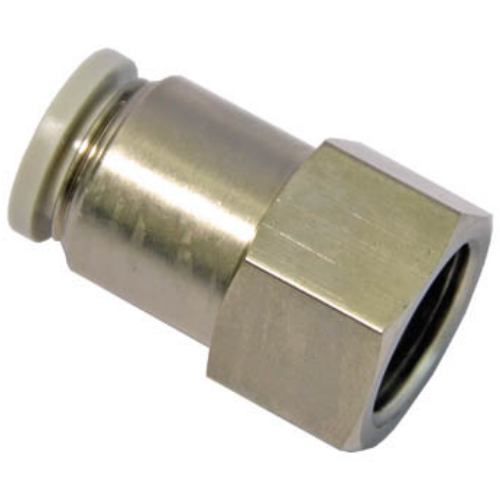

Airtac APCF Female Thread Straight Connector APCF10-M12X1.25
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF10-M12X1.25 Female Thread Straight Fitting Specifications
- Model: APCF10-M12X1.25
- Thread type: Metric internal thread (Female)
- Thread size: M12 × 1.25 pitch
- Material: Nickel-plated brass (C3604)
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface treatment: Electroless nickel plating (5-8μm)
- Weight: 52g ±2g
- Dimensions: 30mm(L) × 16mm(OD) × 16mm(ID passage)
- Torque specification: 15-20 N·m installation torque
- Compliance: RoHS compliant
Precision-machined straight connector featuring dual-seal design with primary metal-to-metal sealing and secondary NBR seal for leak-proof performance. The hexagonal body allows standard wrench installation, while the nickel plating provides corrosion resistance in humid environments. Designed for medium-pressure pneumatic systems requiring stable connections.
- Pneumatic cylinder port connections
- Industrial robot end effector air supply lines
- CNC machine tool coolant system interfaces
- Packaging machine air knife assemblies
- Semiconductor equipment gas delivery systems
Installation note:
Apply PTFE tape on male threads using clockwise winding direction.
Avoid overtightening - stop rotation when fitting becomes hand-tight plus 1/4 turn with wrench.
Not recommended for continuous rotation applications.
| Property | Property Value |
|---|---|
| sku | APCF10-M12X1.25 |
