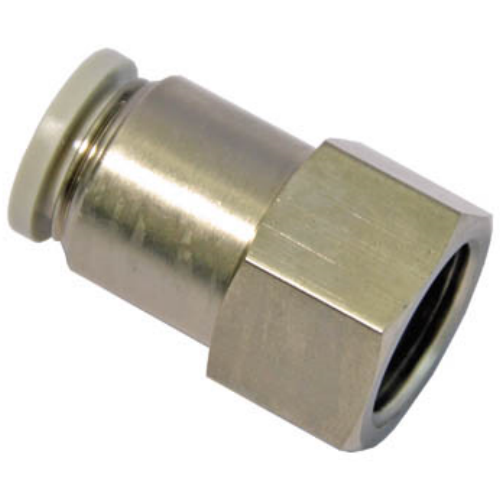

Airtac APCF Female Thread Straight Connector APCF4-M8
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF4-M8 Female Thread Straight Fitting Technical Details
- Model: APCF4-M8
- Type: Female threaded straight connector (BSPP/BSPT compatible)
- Thread specification: M8×1.0 (ISO 228/ISO 7-1 compliant)
- Material: Lead-free brass (CuZn39Pb3) with nickel plating
- Pressure rating: 0.05-1.0 MPa (7-145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR (Nitrile) O-ring
- Surface hardness: ≥HV200 (plating layer)
- Certifications: RoHS compliant, REACH SVHC-free
- Weight: 8.5±0.3g
- Dimensions: 18mm(Length) × 12mm(Width) × 12mm(Height)
- Torque specification: 1.2-1.5 N·m during installation
Precision-machined pneumatic connector featuring dual sealing surfaces (thread+O-ring) for leak-free performance in dynamic pressure conditions. The electroless nickel plating provides enhanced corrosion resistance against moisture and mild chemicals. Designed with a 360° rotatable collar for tool-free installation in confined spaces.
- Modular pneumatic circuit assembly in factory automation
- Sensor air supply connections on robotic arms
- Medical device pneumatic tubing interfaces
- Compressed air distribution in semiconductor tools
- Vacuum line connections for packaging machinery
Installation guidance:
Apply 2-3 drops of pneumatic sealant (LOCTITE® 577 equivalent) on threads before assembly.
Avoid overtightening - stop rotation when collar makes full contact with mating surface.
Maximum angular misalignment tolerance: ±3°.
| Property | Property Value |
|---|---|
| sku | APCF4-M8 |
