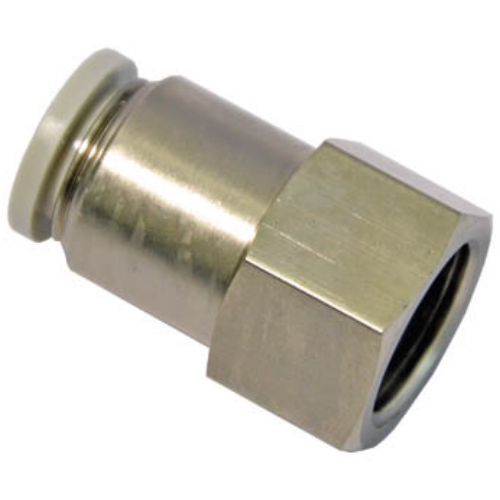

Airtac APCF Female Thread Straight Connector APCF8-01
2. Features excellent flow performance with capacity equivalent to tubing inner diameter;
3. Enables tool-free push-in/pull-out operation while maintaining secure and durable tubing connections;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-proof threaded joints;
5. Nickel-plated brass body provides superior corrosion and contamination resistance for expanded application scope.
Category: Internal Thread Straight Fittings | Brand: AirTAC | Series: APCF
AirTAC APCF8-01 Female Thread Straight Fitting Detailed Specifications
- Model: APCF8-01
- Type: Female threaded straight connector (BSPP/BSPT compatible)
- Thread specification: PT1/8 (G1/8 equivalent)
- Material: Stainless steel SUS303 (anti-corrosion treatment)
- Pressure rating: 0.05–1.5 MPa (7–217 psi)
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 150℃
- Seal type: Metal-to-metal sealing with optional PTFE tape compatibility
- Surface finish: Electropolished (Ra≤0.8μm)
- Weight: 24.5g ±0.3g
- Dimensions: 30mm(Total Length) × 12mm(Hex Width) × 8mm(Thread OD)
- Certification: RoHS compliant, ISO 1179-1 standard
- Torque limit: 12–15 N·m (installation torque)
Precision-engineered straight connector featuring dual-sealing capability through tapered thread engagement. The hexagonal body design allows 360° tool access in confined spaces. Electropolished internal flow path minimizes turbulence and particle retention, making it ideal for clean air/vacuum systems. Compatible with most industrial fluids including compressed air, nitrogen, and inert gases.
- Pneumatic cylinder port connections
- Vacuum generator line installations
- Medical gas distribution systems
- Semiconductor manufacturing equipment
- High-cycle automation tooling
- Hydraulic test bench configurations
Installation guidelines:
Apply 1.5–2 wraps of PTFE tape clockwise on male threads.
Use backup wrench on adjacent fittings during tightening to prevent system torsion.
Maximum 3 reuses recommended for critical pressure applications.
| Property | Property Value |
|---|---|
| sku | APCF8-01 |
