Airtac APH Hex Head Connector APH12-M12
$4.36
Regular price
$11.86
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APH12-M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout

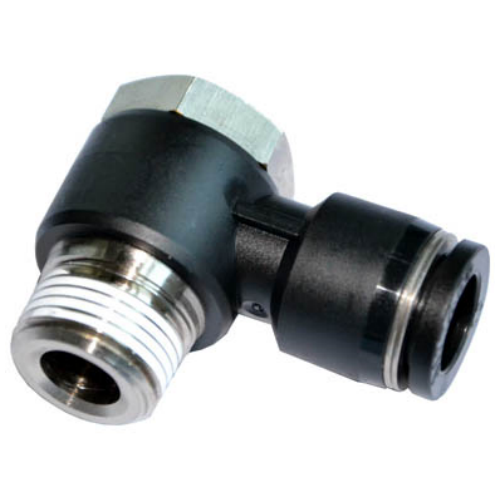

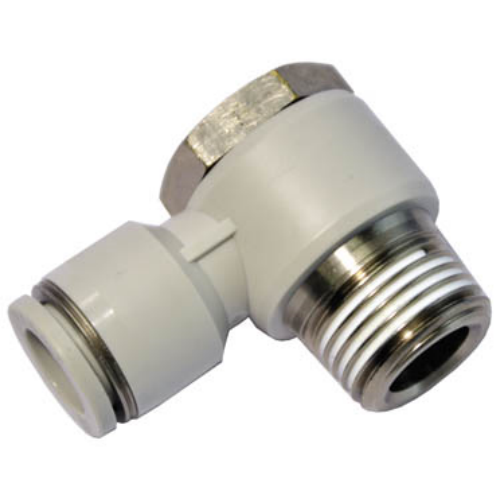

Description
1. Available in multiple models and specifications, widely applicable in various pneumatic systems;
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
Installation protocol:
Apply 2-3 drops of pneumatic sealant (viscosity ≤32cSt) on threads before assembly.
Tighten with 18-22N·m torque using calibrated torque wrench. Avoid cross-threading
by hand-starting 3 full rotations before final tightening.
Compatibility note:
Not recommended for use with PTFE tape due to potential particle contamination.
Always pair with female ports meeting ISO 1179-2 standard. Replace O-ring every
5,000 connection cycles or 2 years (whichever comes first).
2. Superior flow performance achieving equivalent flow capacity to tubing inner diameter;
3. Tool-free tubing insertion/extraction with secure, durable, and leak-proof connections;
4. Threads pre-coated with sealant; M5 metric threads integrate sealing washers for leak-resistant threaded joints;
5. Nickel-plated brass body ensures corrosion resistance and contamination prevention, expanding application versatility.
Category: Hex Nipple Connectors, Brand: AIRTAC, Series: APH
AirTAC APH12-M12 Hexagon Straight Thread Connector Specifications
- Model: APH12-M12
- Thread type: M12×1.5 external hexagon (male thread)
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile) O-ring
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: ≥HV200
- Thread tolerance: 6g per ISO 965-1
- Weight: 24.5±0.8g
- Dimensions: 20mm(L) × 12mm(W across flats) × 12mm(H)
- Torque resistance: ≤49N·m
- Corrosion resistance: 96hrs neutral salt spray test passed
Precision-machined pneumatic connector featuring anti-vibration locking threads and dual-seal design. The hexagonal body allows tool-assisted tightening with standard 12mm wrenches. Nickel plating provides enhanced wear resistance against repeated installations.
Typical Applications:
- Pneumatic cylinder port connections
- Modular assembly in factory automation lines
- Robotic end-effector air supply interfaces
- Medical equipment gas line junctions
- Compressed air distribution blocks
Installation protocol:
Apply 2-3 drops of pneumatic sealant (viscosity ≤32cSt) on threads before assembly.
Tighten with 18-22N·m torque using calibrated torque wrench. Avoid cross-threading
by hand-starting 3 full rotations before final tightening.
Compatibility note:
Not recommended for use with PTFE tape due to potential particle contamination.
Always pair with female ports meeting ISO 1179-2 standard. Replace O-ring every
5,000 connection cycles or 2 years (whichever comes first).
| Property | Property Value |
|---|---|
| sku | APH12-M12 |
