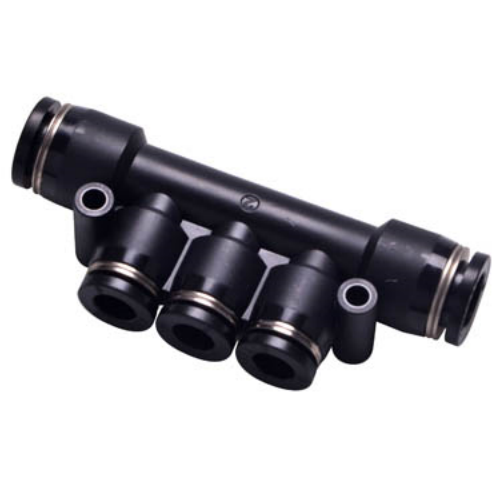

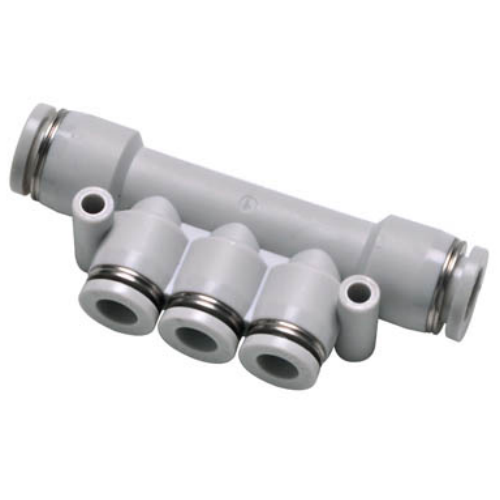

Airtac APKG 5-Port Reducer Adapter APKG8-6
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG8-6 Five-Way Reducing Connector Technical Details
- Model: APKG8-6
- Type: Brass 5-way reducing union with nickel plating
- Interface sizes: PT1/8 (input) ↔ PT3/16 (output)
- Thread standards: NPT/BSP compatible
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 80℃
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 12mm(W) × 15mm(H)
- Surface roughness: Ra ≤3.2μm
- Torque limit: 1.5-2.0 N·m during installation
- Compatibility: Works with PU/Nylon tubing (OD 4mm & 6mm)
Precision-machined pneumatic connector enabling secure transitions between different tubing diameters in multi-branch circuits. Features 360° rotatable ports for flexible piping arrangements and anti-vibration grooves for stable connections. Electroless nickel coating provides corrosion resistance exceeding 96hrs salt spray test.
- Modular pneumatic manifolds requiring flow division
- Robotic gripper air distribution systems
- CNC machine tool coolant line conversions
- Compressed air distribution in tight spaces
- Laboratory instrument gas mixing setups
Installation protocol:
Apply 1.5 wraps of PTFE tape on male threads (clockwise winding).
Avoid overtightening - use torque wrench for critical applications.
Maximum angular deviation: ±3° from primary flow axis.
| Property | Property Value |
|---|---|
| sku | APKG8-6 |
