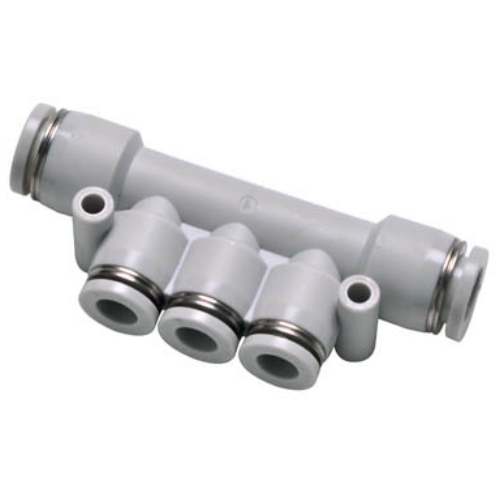

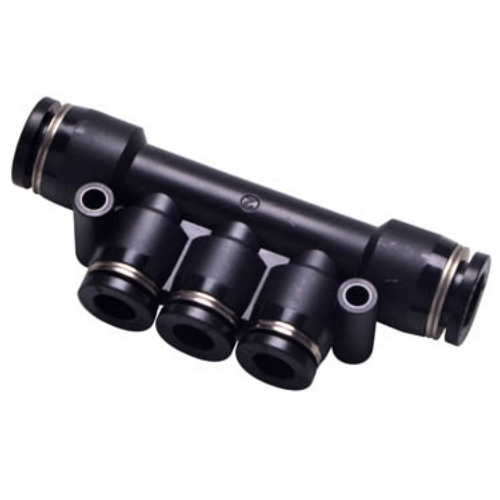

Airtac APKG 5-Port Reducer Adapter EPKG10-8
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EPKG10-8
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、This series of fittings are copper-free and can be directly applied in copper-restricted environments;
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
Installation protocol:
Apply 2-3 drops of pneumatic sealant (viscosity ≤50 cSt) on male threads before assembly.
Tighten using torque wrench in crisscross pattern - maximum 8 N·m for M5 ports, 12 N·m for G-series ports.
Perform pressure test at 1.25× operating pressure after installation.
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG Five-Way Reducing Connector EPKG10-8 Technical Details
- Model: EPKG10-8
- Type: 5-port stepped reducing connector (male/female combination)
- Material: Nickel-plated brass body
- Thread standards: M5×0.8 (port 1), PT1/8 (port 2), G1/8 (port 3), PT1/4 (port 4), M10×1.0 (port 5)
- Pressure range: 0.5-1.6 MPa
- Temperature range: -20℃ to 80℃ (continuous operation)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Flow capacity: 350 NL/min @ 0.5 MPa
- Torque resistance: ≤15 N·m
- Vibration resistance: 10-2000 Hz, 20G acceleration
- Weight: 58±2g
- Dimensions: 42mm(L) × 28mm(W) × 34mm(H)
Multi-interface conversion hub enabling cross-standard pneumatic connections in confined spaces. Features precision-machined tapered threads with anti-vibration grooves and chemical-resistant sealing surfaces. Includes built-in O-ring compression limiters to prevent overtightening.
Typical Applications:
- Modular pneumatic system integration
- Multi-standard equipment retrofits
- Robotic end-effector tool changers
- Compressed air distribution blocks
- Instrumentation calibration setups
Installation protocol:
Apply 2-3 drops of pneumatic sealant (viscosity ≤50 cSt) on male threads before assembly.
Tighten using torque wrench in crisscross pattern - maximum 8 N·m for M5 ports, 12 N·m for G-series ports.
Perform pressure test at 1.25× operating pressure after installation.
| Property | Property Value |
|---|---|
| sku | EPKG10-8 |
