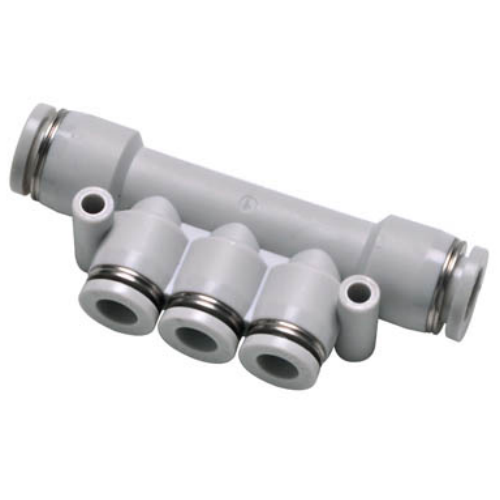

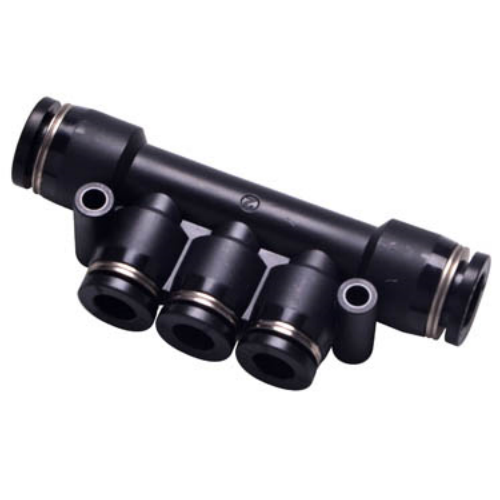

Airtac APKG 5-Port Reducer Adapter EPKG6-4
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG Five-Way Reducing Connector EPKG6-4 Technical Details
- Model: EPKG6-4
- Type: Five-way reducing union with metric-to-BSPP conversion
- Primary port size: G1/8 (BSPP)
- Secondary port size: M5×0.8
- Material: Anodized aluminum alloy (body), CRN steel (threads)
- Max working pressure: 1.5 MPa (217 PSI)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 80℃
- Weight: 28g ±0.5g
- Dimensions: 32mm(L) × 24mm(W) × 18mm(H)
- Surface hardness: HV 120-140
- Thread engagement depth: 8mm (G1/8 side), 6mm (M5 side)
- Seal type: Integrated O-ring (NBR material)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined transition fitting enabling secure connections between G1/8 and M5 pneumatic components. Features dual-stage sealing with corrosion-resistant anodization, designed for high-vibration environments. Includes built-in port identification markings (A/B/P/R/S) for simplified circuit assembly.
- Modular pneumatic manifold interconnections
- Robotic end-effector tooling conversions
- CNC machine multi-circuit distribution blocks
- Laboratory instrumentation air line adapters
- Compact automation cell pneumatic routing
Installation protocol:
Apply 2-3Nm torque during assembly using flank-contact wrench.
Use thread sealant only on male BSPP threads. Avoid overtightening
M5 ports - maximum recommended engagement force 0.8Nm.
- CV value: 0.12
- Effective flow area: 1.8 mm²
- Pressure drop: ≤0.02 MPa @ 0.5 MPa supply
| Property | Property Value |
|---|---|
| sku | EPKG6-4 |
