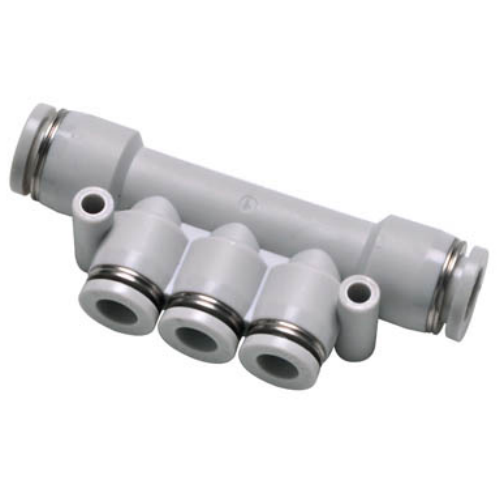

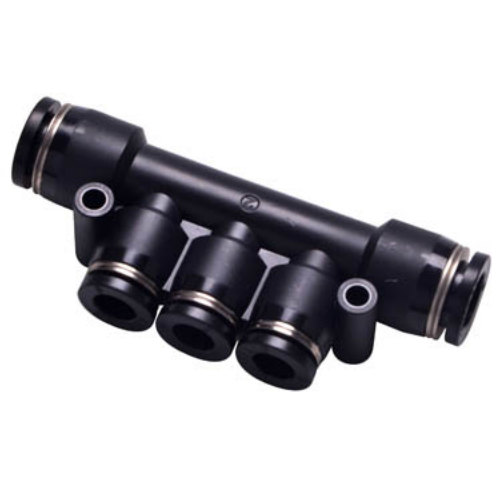

Airtac APKG 5-Port Reducer Adapter EPKG8-6
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EPKG8-6
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、This series of fittings are copper-free and can be directly applied in copper-restricted environments;
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
Installation note:
Apply thread sealant (PTFE tape or liquid sealant) to male threads only.
Avoid overtightening - use torque wrench for precise installation.
Maximum angular deviation: ±3° from primary flow axis.
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC EPKG8-6 Five-Way Reducing Tee Connector Specifications
- Model: EPKG8-6
- Type: Five-way pneumatic reducing tee connector
- Port configuration: 1/8" (PT) × 3/8" (PT) × 3-way
- Thread standard: BSPP (G-thread)
- Material: Brass body with nickel plating
- Seal material: NBR (Nitrile) rubber
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Proof pressure: 1.5 MPa
- Weight: 48g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 28mm(H)
- Surface roughness: Ra ≤3.2μm
- Installation torque: 1.5–2 Nm
- Compliance: RoHS compliant
Precision-engineered flow distribution component with corrosion-resistant nickel plating, designed for multi-directional pneumatic circuit branching. Features pressure-optimized internal channels to minimize turbulence and pressure drop. Compatible with ISO 1179-2 standard fittings.
Typical Applications:
- Multi-actuator pneumatic control systems
- Air tool manifold distribution networks
- Packaging machine air circuit splitting
- Robotic end-effector pneumatic routing
- Laboratory pneumatic test benches
Installation note:
Apply thread sealant (PTFE tape or liquid sealant) to male threads only.
Avoid overtightening - use torque wrench for precise installation.
Maximum angular deviation: ±3° from primary flow axis.
Maintenance:
- Inspect seals every 2,000 operating hours
- Lubricate with ISO VG32 pneumatic oil if used in high-cycle applications
- Replace if internal corrosion exceeds 0.1mm depth
| Property | Property Value |
|---|---|
| sku | EPKG8-6 |
