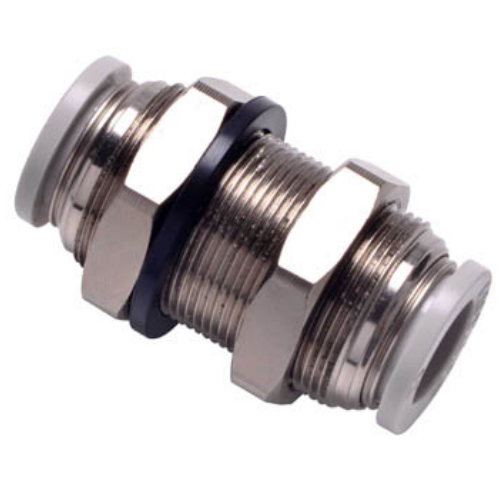

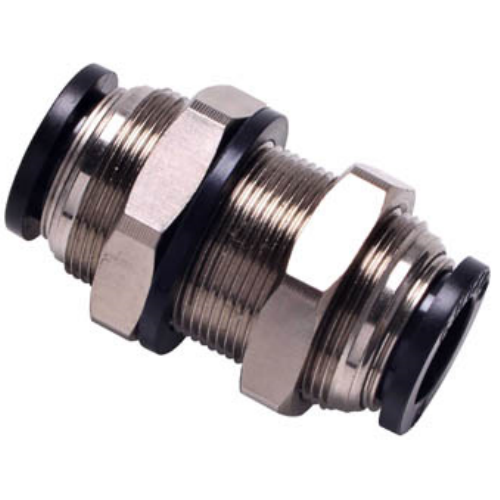

Airtac APM Bulkhead Straight Connector APM12
$5.39
Regular price
$12.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APM12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. This series of connectors is copper-free, making them suitable for direct use in copper-restricted environments.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
Installation Protocol:
Apply PTFE tape clockwise (2.5 wraps) on male threads. Use backup wrench on hex base during tightening.
Post-installation pressure test required - maintain 0.8MPa for 5 mins with soap bubble check.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
AirTAC APM12 Bulkhead Straight Fitting Technical Details
- Model Series: APM12 (Metric Series)
- Thread Standard: G1/8 (BSPP) / Optional NPT1/8
- Material: Lead-Free Brass (CuZn39Pb3) with Electroless Nickel Plating
- Seal Material: HNBR (Hydrogenated Nitrile) for enhanced chemical resistance
- Max Working Pressure: 1.5 MPa (217 psi)
- Proof Pressure: 3.0 MPa (435 psi)
- Burst Pressure: 6.0 MPa (870 psi)
- Temperature Range: -20℃ to 120℃ (continuous use)
- Surface Hardness: HV0.3 550-650 (plated layer)
- Installation Torque: 1.5-2.0 Nm (13-18 lb-in)
- Weight: 28g ±0.5g
- Dimensions: 25mm (L) × 25mm (W) × 25mm (H) excluding threads
- Thread Engagement: 8mm minimum
- Flow Coefficient (Cv): 0.38
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Corrosion Protection: 96hrs salt spray test passed
Heavy-duty bulkhead fitting with dual sealing structure (metal-to-metal primary seal + HNBR secondary seal). Features anti-vibration knurling and 360° rotatable collar for tool-free installation adjustment. Compatible with ISO 1179-2 and DIN 3852 standards.
Industrial Applications:
- Pneumatic cabinet pass-through connections
- CNC machine tool lubrication line interfaces
- Semiconductor equipment gas distribution panels
- Hydraulic sensor mounting in agricultural machinery
- Robotic arm pressure line transitions
Installation Protocol:
Apply PTFE tape clockwise (2.5 wraps) on male threads. Use backup wrench on hex base during tightening.
Post-installation pressure test required - maintain 0.8MPa for 5 mins with soap bubble check.
Lifecycle Care:
Replace every 5 years or 50,000 pressure cycles. Compatible with petroleum-based lubricants but incompatible with phosphate ester fluids.
Storage recommendation: Keep in nitrogen-purged packaging until use.
| Property | Property Value |
|---|---|
| sku | APM12 |
