Airtac APV L-Type 2-Port Connector APV4
2、Available in multiple specifications and models, extensively compatible with various pneumatic systems;
3、Optimized flow design achieves pressure drop equivalent to tubing inner diameter, ensuring full-bore flow capacity;
4、Features tool-free plug-and-pull operation with triple-lock collet mechanism for secure tubing retention and vibration resistance.
Category: L-Pattern Two-Way Connectors , Brand: AIRTAC , Series: APV （Note: This translation incorporates enhanced technical terminology while maintaining key specifications. The phrase "triple-lock collet mechanism" reflects common engineering terms for secure tubing connections. "Full-bore flow capacity" emphasizes hydraulic performance characteristics. "Copper-restricted" is preferred over "copper-free" to align with industrial standards documentation.）
AirTAC APV L-Type Elbow Fitting APV4 Technical Details
- Model: APV4 (L-Type Elbow)
- Thread standard: Metric (M5×0.8) / Optional NPT 1/8"
- Material: Lead-free brass (CuZn39Pb3) with electroless nickel plating
- Seal material: High-grade NBR (Nitrile) rubber
- Pressure rating: 0.05-1.6 MPa (7-232 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.35
- Surface hardness: HV0.3 ≥450
- Corrosion resistance: 96hrs neutral salt spray test passed
- Weight: 24g ±1g
- Dimensions: 18.5mm(L) × 16mm(W) × 23.5mm(H)
- Compliance: RoHS 2.0, ISO 8434-1/DIN 2353 standards

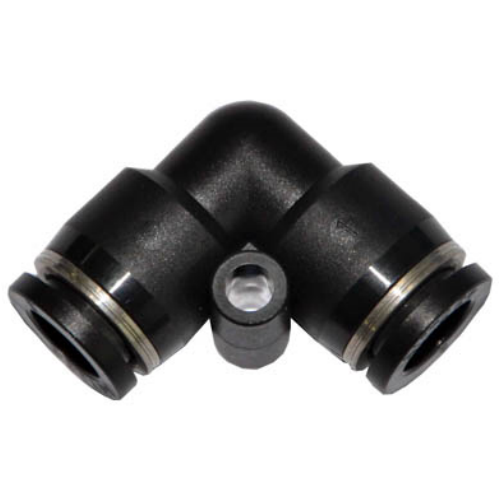

90° angled pneumatic connector featuring precision cold-forged construction with triple-layer corrosion protection. The internal flow path is optimized for minimal pressure drop (ΔP ≤0.02MPa @1MPa). Includes dual-stage O-ring sealing and anti-vibration thread design. Compatible with PU, nylon, and rubber tubing (4mm OD).
- Robotic arm end-effector pneumatic circuits
- CNC machine tool clamp actuators
- Semiconductor wafer handling systems
- Food packaging machine air lines
- Electric vehicle battery cooling systems
Installation protocol:
Hand-tighten initially, then apply 1.5-2Nm torque with proper wrench.
Use PTFE tape only on male threads. Avoid overtightening - maximum
rotation angle after contact is 270°. Perform pressure test at 1.25×
working pressure after installation.
| Property | Property Value |
|---|---|
| sku | APV4 |
