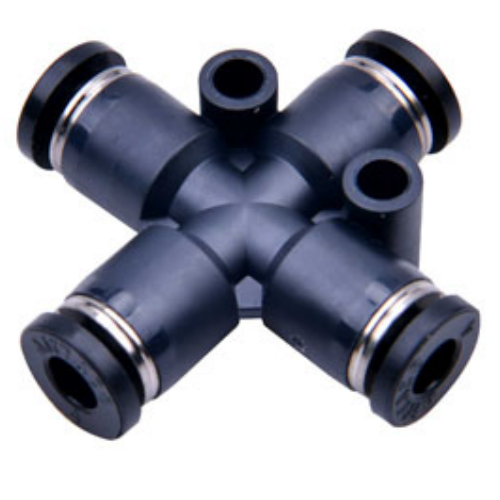

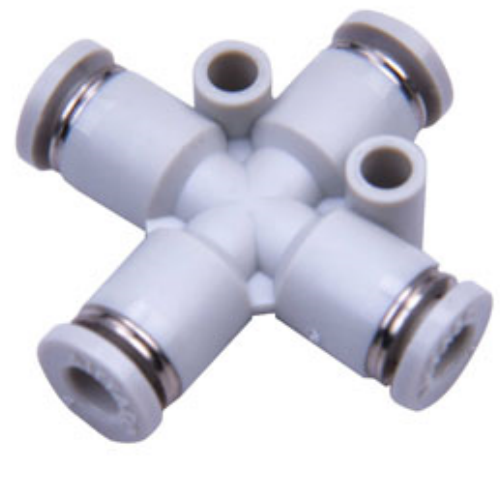

Airtac APZA Cross Fitting APZA12
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
AirTAC APZA Series Cross Fitting APZA12 Technical Details
- Model: APZA12 (Standard Cross Fitting)
- Thread Standard: Metric (M5×0.8) / Optional NPT1/8
- Material: Nickel-plated brass (C3604)
- Surface Hardness: ≥HV300
- Operating Pressure: 0.2-0.8 MPa
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -20℃ to 80℃
- Seal Material: NBR (Standard) / Optional FKM
- Flow Rate: 350 NL/min (at 0.5 MPa)
- Weight: 82±2g
- Dimensions: 24mm(L) × 24mm(W) × 24mm(H)
- Port Configuration: 4-way equal diameter
- Compliance: RoHS compliant
Precision-machined cross connector with optimized internal flow channels, featuring a 360° rotatable design for flexible piping arrangements. The electroplated surface provides corrosion resistance in humid environments. Designed for zero-leak performance under cyclic pressure conditions.
- Modular pneumatic circuit distribution systems
- Multi-axis robotic end-effector air supply
- CNC machine tool coolant control manifolds
- Industrial vacuum line branching systems
- Medical gas delivery infrastructure
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (0.1mm thickness recommended).
Tighten with 1.2-1.5 N·m torque using a crowfoot wrench. Avoid overtightening
which may deform sealing surfaces. Perform pressure test at 1.25×max working
pressure after assembly.
| Property | Property Value |
|---|---|
| sku | APZA12 |
