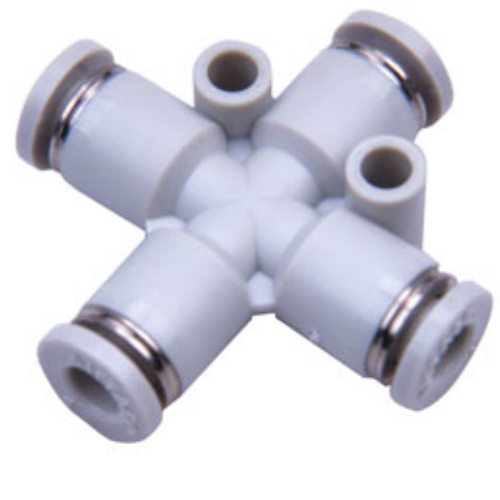

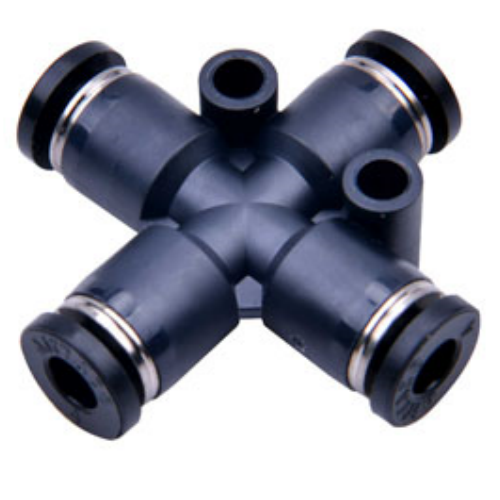

Airtac APZA Cross Fitting APZA4
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
AirTAC APZA Series Cross Fitting APZA4 Technical Details
- Model: APZA4 (Cross Connector)
- Type: 4-way pneumatic cross fitting
- Thread standard: PT1/8 (BSPP) × 4 ports
- Material: Nickel-plated brass (C3604)
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Seal material: NBR (Nitrile rubber)
- Surface treatment: Electroless nickel plating (5-8μm)
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Protection class: IP40 (dust protected)
- Weight: 48g ±2g
- Dimensions: 18mm(L) × 18mm(W) × 18mm(H) (core body)
- Port spacing: 14mm center-to-center (all axes)
Precision-machined cross fitting with 360° rotatable ports for multi-directional pneumatic circuit branching. Features triple-sealing structure (thread seal + O-ring + metal-to-metal contact) ensuring leak-free performance in vibration-prone environments. Compatible with ISO 1179-2 standard fittings.
- Modular pneumatic manifold systems
- Robotic end effector air distribution
- CNC machine tool pneumatic networks
- Automated assembly line control circuits
- Medical device pneumatic control units
Installation guidance:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten - recommended torque 1.2-1.5N·m).
For vertical installations, position primary flow path horizontally to prevent particulate accumulation.
| Property | Property Value |
|---|---|
| sku | APZA4 |
