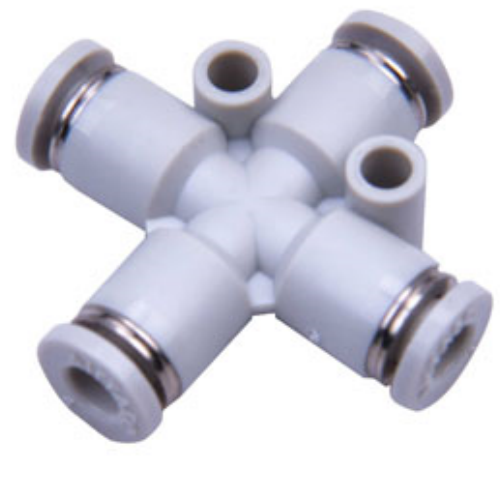

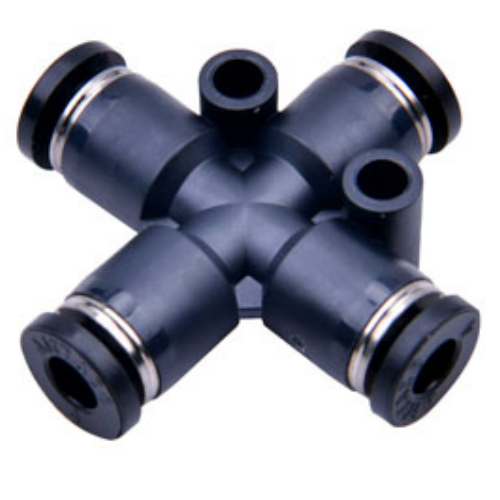

Airtac APZA Cross Fitting APZA6
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APZA6
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. This series of fittings is copper-free, making them suitable for direct use in copper-restricted environments;
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
Installation note:
Apply 2-3 drops of pneumatic sealant (LOCTITE 577 recommended) on threads.
Tighten to 1.2-1.5 N·m torque using crowfoot wrench. Avoid overtightening
which may deform sealing surfaces. Maximum 90° reorientation allowed after
initial tightening.
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
AirTAC APZA6 Cross Fitting Technical Details
- Model: APZA6
- Type: 4-way cross connector (straight thread)
- Thread standard: PT1/8 (BSPP) / NPT1/8 optional
- Material: Anodized aluminum alloy body
- Seal material: NBR (Nitrile) / FKM (Viton) optional
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: HV 120±20
- Weight: 28±2g
- Dimensions: 20mm(L) × 20mm(W) × 20mm(H)
- Port-to-port distance: 14mm (center spacing)
- Surface treatment: Black anodized
Precision-machined cross connector with 360° rotatable ports for flexible pneumatic circuit design. Features anti-vibration grooves and color-coded sealing rings (black for NBR, brown for FKM). Compatible with ISO 6150B standard fittings.
Typical Applications:
- Multi-axis pneumatic distribution blocks
- Modular assembly fixtures
- Robotic end effector air supply hubs
- CNC machine tool pneumatic circuits
- Medical device test bench setups
Installation note:
Apply 2-3 drops of pneumatic sealant (LOCTITE 577 recommended) on threads.
Tighten to 1.2-1.5 N·m torque using crowfoot wrench. Avoid overtightening
which may deform sealing surfaces. Maximum 90° reorientation allowed after
initial tightening.
| Property | Property Value |
|---|---|
| sku | APZA6 |
