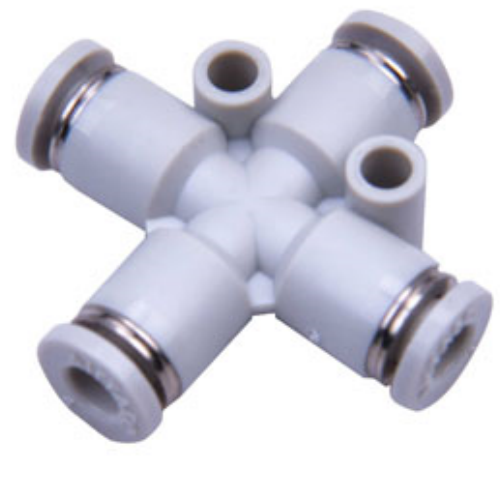

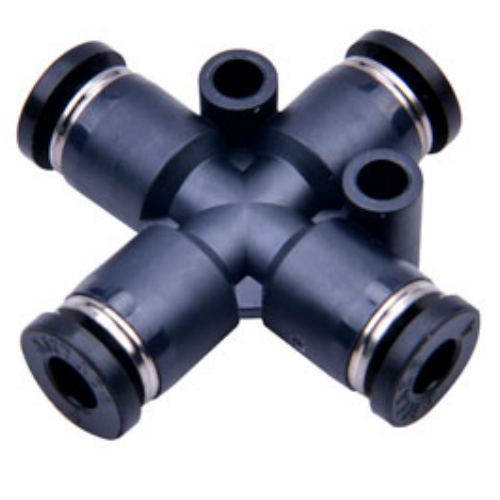

Airtac APZA Cross Fitting APZA8
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APZA8
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. This series of fittings is copper-free, making them suitable for direct use in copper-restricted environments;
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
Installation protocol:
Apply 0.5–0.8Nm torque using crowfoot wrench. For gas applications,
use thread sealant on male threads only. Maximum 15° misalignment
tolerance between connected components.
Avoid using with ester-based
lubricants – incompatible with NBR seals. For chemical environments,
specify optional FKM seal version (APZA8-FK).
2. Available in multiple models and specifications, widely applicable across various pneumatic systems;
3. Superior flow performance allows unimpeded passage of fluid volumes equivalent to the inner diameter of connected tubing;
4. Features push-to-connect functionality for swift tube assembly, with durable and secure connections ensuring long-term reliability.
Category: Cross Type Four-Way Fittings , Brand: AIRTAC , Series: APZA
AirTAC APZA8 Cross Fitting Technical Details
- Model: APZA8 (Cross Connector Series)
- Thread standard: Metric M5 × 0.8 (P=0.8mm pitch)
- Material: Brass CW617N with electroless nickel plating
- Surface hardness: ≥500HV (micro-Vickers)
- Pressure rating: 0.05–1.2 MPa (7–174 psi)
- Burst pressure: ≥4.8 MPa (696 psi)
- Operating temperature: -20℃ to 120℃ (static) / -5℃ to 80℃ (dynamic)
- Weight: 18.5±0.3g (including packaging)
- Dimensions: 19.8mm(L) × 19.8mm(W) × 19.8mm(H) (cube structure)
- Seal type: Integral O-ring groove design
- Compatible tubing: Ø4mm (5/32") & Ø6mm (1/4") polyurethane/nylon
- Vibration resistance: 10–2000Hz, 20G acceleration
- Corrosion protection: 96hrs neutral salt spray test passed
Precision-machined cross fitting with 360° rotatable ports enables multi-directional pneumatic circuit branching. Features anti-vibration lock structure and dual-stage sealing (metal-to-metal + NBR gasket). Electropolished internal channels minimize flow resistance (Cv=0.12).
Industrial Applications:
- Modular pneumatic manifolds in CNC tool changers
- Vacuum circuit distribution for electronic component handling
- Multi-axis collaborative robot end effector plumbing
- Compressed air sampling systems with parallel sensors
- Laboratory pneumatic tool clusters
Installation protocol:
Apply 0.5–0.8Nm torque using crowfoot wrench. For gas applications,
use thread sealant on male threads only. Maximum 15° misalignment
tolerance between connected components.
Avoid using with ester-based
lubricants – incompatible with NBR seals. For chemical environments,
specify optional FKM seal version (APZA8-FK).
| Property | Property Value |
|---|---|
| sku | APZA8 |
