Airtac BPC Metal Straight Connector BPC802
$5.13
Regular price
$12.63
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPC802
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Constructed with all-metal threaded design, internal components contain brass; multiple models and specifications available, widely compatible with various pneumatic systems;
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads. Hand-tighten plus 1/4 turn with wrench.
Avoid cross-threading – ensure port and fitting axes are aligned within 3° during assembly.
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC

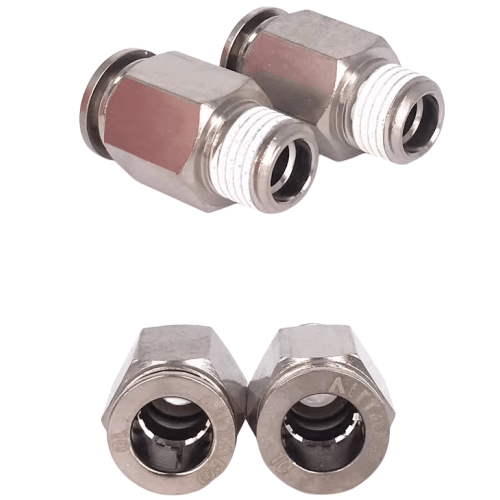

AirTAC BPC802 Metal Straight-Through Fitting Specifications
- Model: BPC802
- Type: Reusable metal body straight connector
- Thread standard: Metric (M5×0.8) & BSPP dual-standard compatible
- Material: Nickel-plated brass (CuZn39Pb3)
- Pressure rating: 1.5 MPa (217 psi) maximum
- Burst pressure: ≥6.0 MPa
- Temperature range: -20℃ to 120℃ (continuous use)
- Seal material: NBR O-ring (replaceable)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Torque resistance: 3.5 N·m max installation torque
- Weight: 18.2±0.5 grams
- Dimensions: 28mm(Length) × 12mm(Width) × 12mm(Height)
- Certifications: RoHS compliant, REACH SVHC-free
High-pressure resistant pneumatic coupling with dual-thread compatibility, featuring a precision-machined hexagonal body for tool grip. The through-hole design maintains 2.5mm inner diameter for minimal pressure drop. Anti-vibration structure prevents loosening under cyclic loads.
Typical Applications:
- Pneumatic cylinder port connections
- Air compressor manifold assemblies
- CNC machine tool pneumatic circuits
- Industrial robot end-effector air supply
- Vacuum system tubing interfaces
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads. Hand-tighten plus 1/4 turn with wrench.
Avoid cross-threading – ensure port and fitting axes are aligned within 3° during assembly.
Service life:
50,000 cycles at rated pressure when lubricated with ISO VG32 pneumatic oil.
Replace O-ring if leakage exceeds 10 bubbles/min under soap test.
| Property | Property Value |
|---|---|
| sku | BPC802 |
| Port Size | <8mm> |
| Connection Thread | PT1/4 |
