Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF1002
$6.27
Regular price
$13.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPMF1002
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

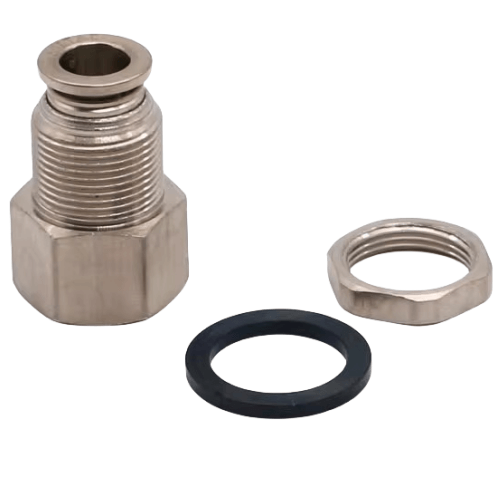

AirTAC BPMF1002 Full Metal Female Thread Bulkhead Straight Fitting
- Model: BPMF1002
- Type: Female threaded bulkhead union (straight through)
- Thread standard: G1/8 (ISO228-1 compliant)
- Material: CNC-machined stainless steel SS304
- Seal type: Embedded PTFE washer
- Pressure rating: 0.5-1.6 MPa (72-232 psi)
- Temperature range: -20℃ to 150℃ (continuous)
- Surface treatment: Electropolished finish (Ra≤0.8μm)
- Panel thickness compatibility: 1-6mm
- Weight: 28g ±0.5g
- Dimensions: 25mm(Length) × 16mm(Width) × 16mm(Height)
- Torque specification: 8-10 N·m installation torque
- Certification: RoHS compliant
Precision-engineered bulkhead fitting featuring dual O-ring sealed panel interface and corrosion-resistant construction. The stepped flange design ensures secure mounting while preventing overtightening. Compatible with air, water, and mild chemical fluids.
Typical Applications:
- Pneumatic control cabinet pass-through connections
- Hydraulic manifold block installations
- CNC machine tool coolant line routing
- Semiconductor equipment gas distribution
- High-vibration industrial robotics
Installation protocol:
Apply thread sealant to male threads only. Use backup wrench on hex flats during assembly.
Perform pressure test at 1.25× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | BPMF1002 |
