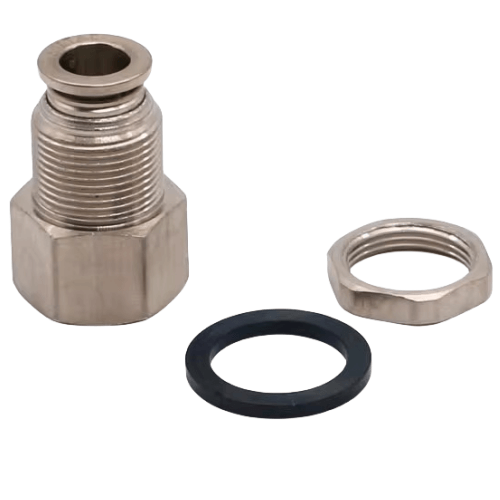

Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF1203
AirTAC BPMF Full Metal Female Thread Bulkhead Union Fitting BPMF1203 Specifications
- Model: BPMF1203
- Thread Type: G1/8" BSPP internal threads (ISO 228 standard)
- Material: 303/304 stainless steel (corrosion-resistant)
- Surface Treatment: Electro-polished finish (Ra ≤0.8μm)
- Pressure Rating: 1.5 MPa (217 PSI) maximum working pressure
- Temperature Range: -30℃ to 150℃ (-22°F to 302°F)
- Seal Material: PTFE-embedded metal-to-metal sealing
- Panel Thickness Compatibility: 1-5mm mounting panels
- Flow Coefficient (Cv): 0.45
- Weight: 25g ±2g
- Dimensions: 35mm(L) × 14mm(Ø) × 8mm(Through-hole Ø)
- Vibration Resistance: 10-2000Hz, 20G acceleration
Heavy-duty bulkhead union designed for panel-mounted pneumatic/hydraulic connections. Features zero-leakage dual-contact sealing technology with anti-vibration lock nuts. The 360° rotatable design allows flexible tubing orientation adjustment post-installation. Compatible with air, water, and light oil media.
- Robotic arm pneumatic feed-through systems
- Food processing equipment CIP/SIP connections
- Semiconductor fab gas distribution panels
- Hydraulic test bench instrumentation ports
- Electric vehicle battery cooling manifolds
Installation protocol:
Use 12mm open-end wrench for counter-rotation during final tightening.
Apply 2-3 wraps of PTFE tape on male threads (AWWA standard).
Maximum torque: 15 N·m. Perform pressure test at 2x working pressure for 5 minutes.
