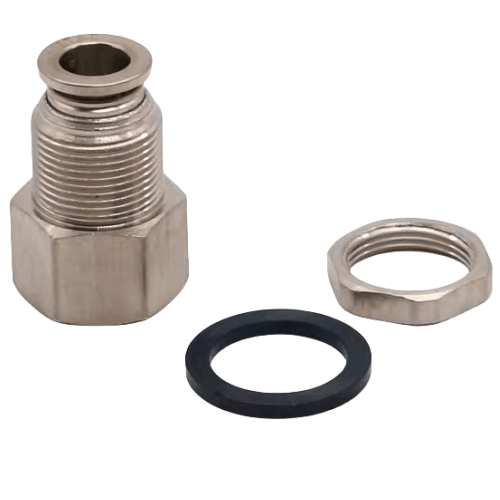

Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF1204
AirTAC BPMF1204 Full Metal Female Thread Bulkhead Straight Fitting Specifications
- Model: BPMF1204
- Type: Through-panel bulkhead connector (straight)
- Body material: 303/304 stainless steel
- Seal material: NBR (Nitrile) O-ring
- Port thread: G1/8 (ISO228 standard)
- Panel thickness range: 1-4mm
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 100℃ (continuous)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Surface treatment: Passivation (silver-white)
- Weight: 18.5g ±0.5g
- Dimensions: 22mm(L) × 16mm(W) × 28mm(H)
- Thread engagement: 5.5mm minimum
- Fluid compatibility: Air, inert gases, water (non-corrosive media)
Heavy-duty bulkhead fitting featuring full-metal construction with corrosion-resistant passivation layer. The tapered thread design (ISO228 G-series) ensures leak-free connections through panels or machine walls. Dual sealing achieved through metal-to-metal thread contact and NBR backup seal. Compatible with ISO 1179-1 mounting holes.
- Pneumatic cabinet pass-through connections
- Coolant line bulkhead installations
- Instrumentation panel plumbing
- Robotic arm pneumatic distribution
- CNC machine tool pneumatic systems
- Semiconductor equipment gas delivery
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads (do not over-tighten).
Recommended torque: 10-12 N·m. Always install O-ring side toward pressurized side.
Use support bracket for panels thinner than 2mm.
