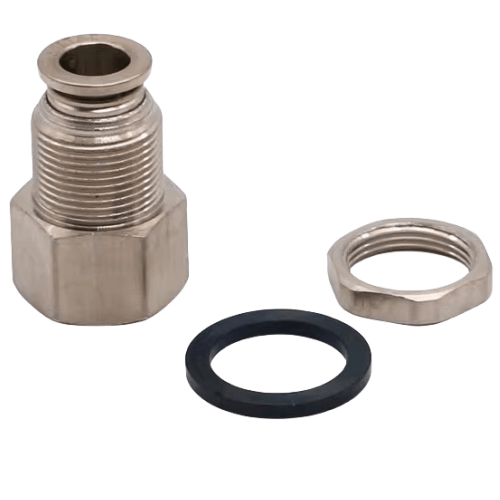

Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF401
AirTAC BPMF401 Full Metal Bulkhead Union Fitting Specifications
- Model: BPMF401
- Material: Nickel-plated brass (corrosion resistant)
- Thread Type: Female threaded (BSPP standard)
- Port Size: 1/4" (G1/4 equivalent)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 120℃
- Weight: 38g ±2g
- Dimensions: 32mm (L) × 22mm (W) × 16mm (H)
- Sealing Method: Metal-to-metal sealing with auxiliary O-ring (NBR)
- Surface Finish: Electrostatic epoxy coating
- Vibration Resistance: ≤15Hz frequency, 1.5mm amplitude
- Certification: RoHS compliant
Heavy-duty bulkhead fitting designed for permanent panel mounting in harsh environments. Features dual sealing mechanism combining metal thread engagement and replaceable O-ring, providing leak-free performance under thermal cycling. The through-hole design allows easy tubing connection on both sides of panels up to 5mm thick.
- Pneumatic control cabinet penetrations
- Hydraulic power unit manifold blocks
- CNC machine tool coolant line routing
- Semiconductor equipment gas distribution
- Railway vehicle brake systems
Installation protocol:
Use two backup wrenches during assembly to prevent housing distortion.
Apply 2-3 wraps of PTFE tape on male threads (AWWA standard).
Max tightening torque: 15 N·m. Compatible with ISO 1179-2 fluid systems.
| Property | Property Value |
|---|---|
| sku | BPMF401 |
