Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF601

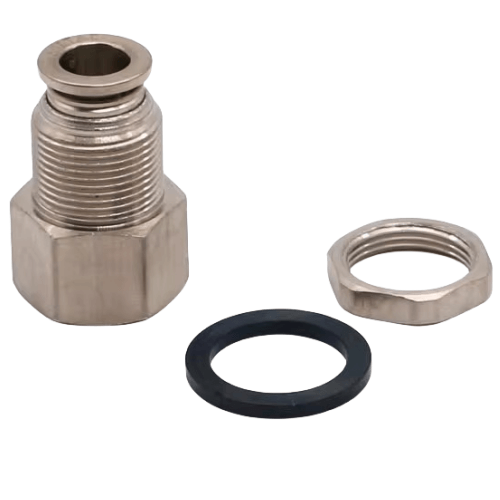

AirTAC BPMF601 Full Metal Female Thread Bulkhead Straight Fitting
- Model: BPMF601
- Thread Type: G1/8 Internal Thread (ISO228 standard)
- Material: Brass body with nickel-plated finish
- Seal Material: NBR (Nitrile) O-rings
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 100℃ (-4°F to 212°F)
- Port-to-Port Length: 26mm ±0.5mm
- Thread Engagement Depth: 8mm minimum
- Panel Thickness Range: 1-5mm
- Weight: 18g ±2g
- Dimensions: 26mm(L) × 16mm(Ø) × 16mm(Panel Mount Diameter)
- Flow Coefficient (Cv): 0.15
- Leakage Rate: ≤0.1 NL/min under 0.5 MPa
- Certification: RoHS compliant
Heavy-duty bulkhead connector designed for permanent panel mounting in pneumatic systems. Features 360° rotatable threaded ports for flexible piping alignment. The through-panel design eliminates external fasteners, maintaining a clean installation surface. Includes dual NBR seals for bidirectional pressure containment.
- Control cabinet pneumatic distribution panels
- Industrial robot tool changer interfaces
- CNC machine coolant system manifolds
- Hydraulic test bench connections
- Food processing equipment with frequent washdown
Installation protocol:
Use 19mm wrench flats for tightening (max torque 14N·m). Apply thread sealant only on male threads,
avoiding contact with O-rings. For vibration-prone environments, install split lock washer behind panel.
