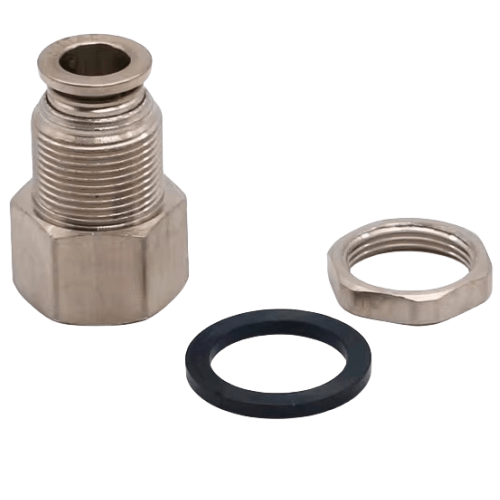

Airtac BPMF Full Metal Internal Thread Bulkhead Straight Fitting BPMF801
AirTAC BPMF801 Full Metal Bulkhead Union Fitting Specifications
- Model: BPMF801
- Series: BPMF (Full Metal Construction)
- Thread Type: Female NPT/BSPP/BSPT (Internal Thread)
- Thread Size Options: G1/8, G1/4, G3/8, G1/2 (Customizable)
- Material: Nickel-plated Brass Body
- Seal Material: HNBR (Hydrogenated Nitrile) O-ring
- Max Working Pressure: 1.5 MPa (217 PSI)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroless Nickel Plating (5-8μm)
- Proof Pressure: 2.25 MPa
- Burst Pressure: ≥3 MPa
- Weight: 34.5g ±0.5g (G1/8 size)
- Dimensions (G1/8): 38mm(L) × 12mm(Dia) × 16mm(Hex)
- Vibration Resistance: 10-2000Hz, 5G acceleration
- Certification: RoHS compliant
Heavy-duty bulkhead union featuring seamless one-piece construction with dual O-ring sealing. The through-panel design enables secure mounting on equipment panels or walls, providing leak-free transitions between internal/external pneumatic lines. Enhanced corrosion resistance with triple-layer plating (base copper, nickel, chrome).
- Hydraulic/pneumatic manifold block connections
- CNC machine tool coolant line transitions
- Compressed air distribution panels
- High-vibration environments (e.g., construction machinery)
- High-temperature steam line connections
- Semiconductor equipment gas delivery systems
Installation protocol:
Use 24mm wrench for hex fitting tightening (Max torque 14.7N·m).
Apply thread sealant on panel threads only. Perform pressure test
at 1.75MPa for 3 minutes post-installation. Replace O-rings every
5,000 operating hours in abrasive environments.
