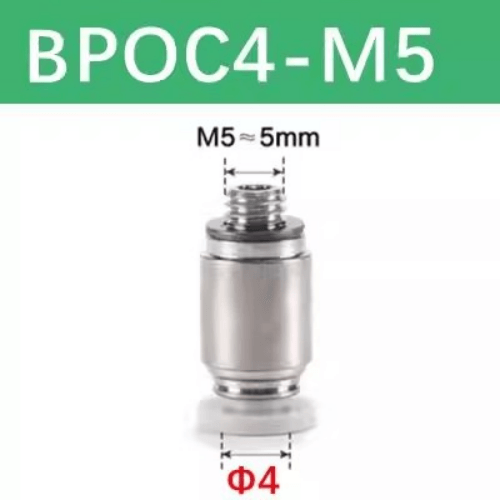

Airtac BPOC Metal Round Thread Straight Connector BPOC4M5
2. Superior flow characteristics matching tubing's nominal inner diameter for maximum flow capacity;
3. Push-to-connect design enables quick tubing installation/removal with secure ozone-resistant connections;
4. M5 metric threads integrated with sealing washer ensure leak-proof threaded connections;
5. Nickel-plated brass construction resists corrosion and contamination for extended service life;
6. All-metal structure maintains performance integrity in high-temperature environments (0-80°C).

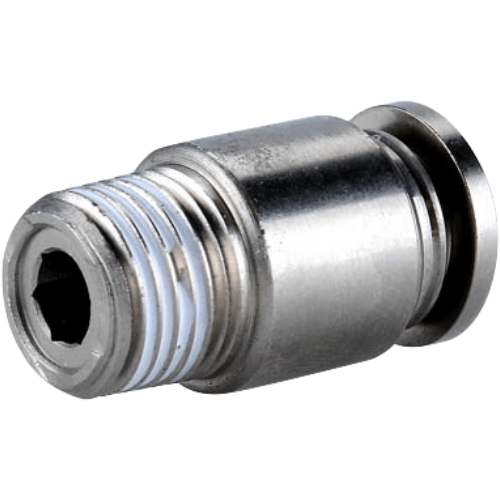

AirTAC BPOC Series Metal Threaded Straight Connector BPOC4M5 Technical Details
- Model: BPOC4M5 (Metric Series)
- Thread Standard: M5×0.8 cylindrical metric thread
- Material: Nickel-plated brass body
- Seal Type: Double-layer NBR O-ring
- Pressure Range: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 80℃ (continuous operation)
- Burst Pressure: ≥3.0 MPa
- Flow Capacity: 120 NL/min (ΔP=0.1MPa)
- Surface Treatment: Electroless nickel plating (8-12μm thickness)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Weight: 23g ±1g
- Dimensions: Ø12mm (max diameter) × 30mm (total length)
- Port Configuration: Female thread to female thread
- Compliance: RoHS 2.0 compliant
Precision-machined straight connector featuring corrosion-resistant nickel plating and anti-vibration design. The dual-seal structure prevents leakage in high-pressure pneumatic systems. Compatible with air, inert gases, and vacuum applications. Includes built-in particle deflection grooves to prevent seal damage during assembly.
- Pneumatic cylinder port connections
- Sensor mounting interfaces in automated machinery
- Vacuum pick-and-place systems
- Medical gas line junctions
- Robotic end-effector pneumatic routing
Mounting guidance:
Apply 1.5-2 wraps of PTFE tape on male threads (do not over-tighten - maximum torque 0.8N·m).
For vertical downward installations, use thread locker to prevent vibration-induced loosening.
| Property | Property Value |
|---|---|
| sku | BPOC4M5 |
