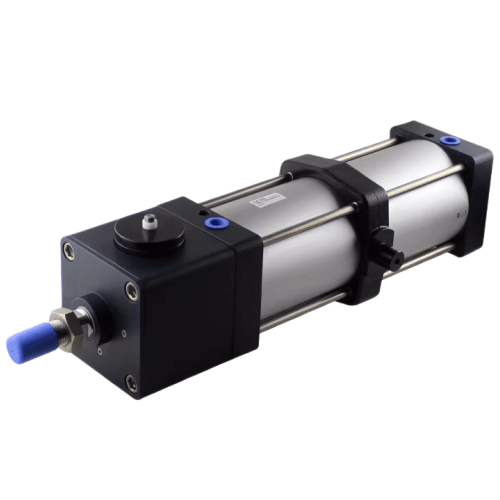

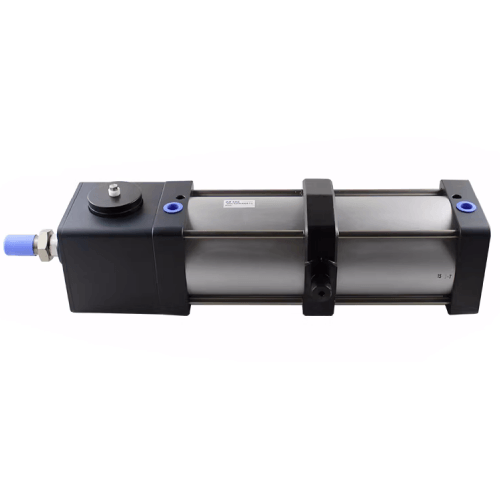

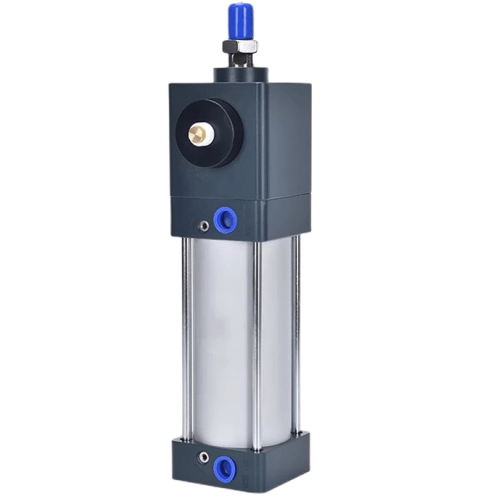

Airtac BSC Clamp Cylinder BSC125X125S
$600.17
Regular price
$607.67
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BSC125X125S
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、An integrated derivative series combining standard cylinders with precision clamping mechanisms;
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
Installation guidelines:
Apply anti-seize compound on piston rod threads. Maintain 0.5-1mm clearance between clamping surfaces.
Lubricate with ISO VG32 hydraulic oil during maintenance. Avoid side-load exceeding 200N.
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC125X125S Clamping Cylinder Specifications
- Model: BSC125X125S
- Type: Double-acting compact clamping cylinder
- Bore size: 125mm
- Stroke: 125mm (customizable 25-500mm)
- Operating pressure: 0.05-1.0 MPa
- Piston speed: 50-750 mm/s
- Cushioning: Adjustable elastic cushion (both ends)
- Mounting type: Square flange with 4×M12 threaded holes
- Rod thread: M30×1.5 external thread
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 12.5kg (excluding accessories)
- Dimensions: 375mm(L) × 125mm(W) × 125mm(H)
- Port size: G1/2 (standard), optional NPT1/2
High-rigidity clamping cylinder engineered for heavy-duty holding applications. Features precision ground rod and double-lip seals for zero leakage. The square flange design enables 360° mounting flexibility and vibration resistance. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
Industrial Applications:
- Automotive welding fixture clamping systems
- Die-casting machine mold locking mechanisms
- CNC rotary table positioning locks
- Heavy component assembly jigs
- Plastic injection molding safety gates
Installation guidelines:
Apply anti-seize compound on piston rod threads. Maintain 0.5-1mm clearance between clamping surfaces.
Lubricate with ISO VG32 hydraulic oil during maintenance. Avoid side-load exceeding 200N.
| Property | Property Value |
|---|---|
| sku | BSC125X125S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT 1/2 |
| Magnet | S-Magnetic |
| Bore Diameter | 125mm |
| Stroke | 125mm |
| Static Holding Force | 8600N |
