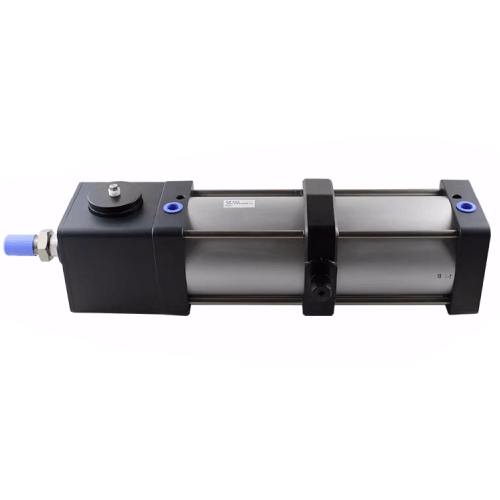

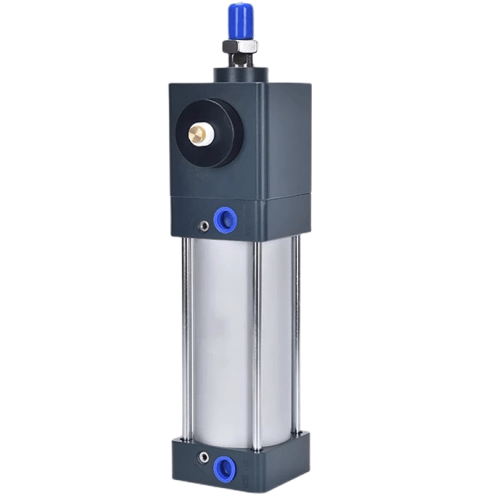

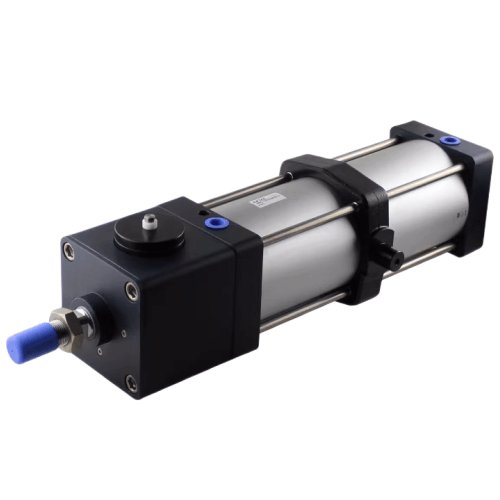

Airtac BSC Clamp Cylinder BSC32X75S
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC32X75S Clamp Cylinder Technical Specifications
- Model: BSC32X75S
- Type: Compact round body clamp cylinder
- Bore size: Ø32mm
- Stroke: 75mm
- Operating pressure: 0.1–0.9 MPa
- Piston speed: 50–700 mm/s
- Cushioning: Adjustable rubber buffer
- Mounting type: Basic (no built-in mounts)
- Rod end: Female thread M12×1.25
- Seal material: NBR (nitrile butadiene rubber)
- Temperature range: -20℃ to 80℃
- Weight: 1.54 kg (without accessories)
- Dimensions: 200mm(L) × 42mm(W) × 42mm(H)
- Port size: M5×0.8 (standard dual ports)
- Rod rotation: 360° adjustable
- Repeat accuracy: ±0.5mm
- Protection rating: IP54 (standard seals)
High-precision clamping cylinder with space-saving design, featuring dual anti-rotation guide rods for exceptional lateral load resistance. The anodized aluminum construction ensures corrosion resistance in humid environments. Requires 5μm filtered air and regular lubrication (ISO VG32 hydraulic oil recommended).
- CNC machine tool workpiece fixturing
- Robotic arm end-effector gripping systems
- Automated conveyor part positioning
- Plastic injection molding ejection mechanisms
- Semiconductor wafer handling equipment
Installation guidelines:
Maintain 0.5-1mm clearance between clamp surfaces during setup.
Use locknuts (not included) for vibration-prone applications.
Maximum side load capacity: 35N at full extension.
| Property | Property Value |
|---|---|
| sku | BSC32X75S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | Bore 32mm |
| Stroke | 75mm |
| Static Holding Force | 600N |
