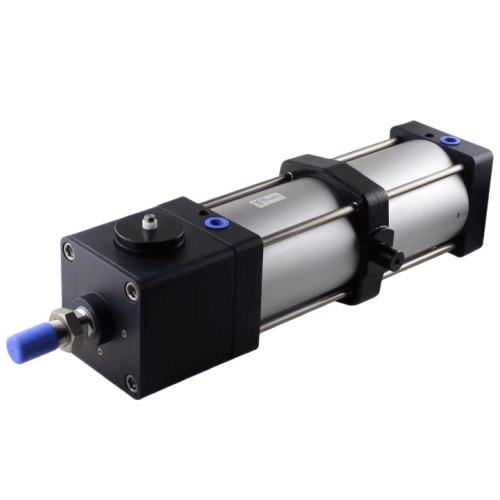

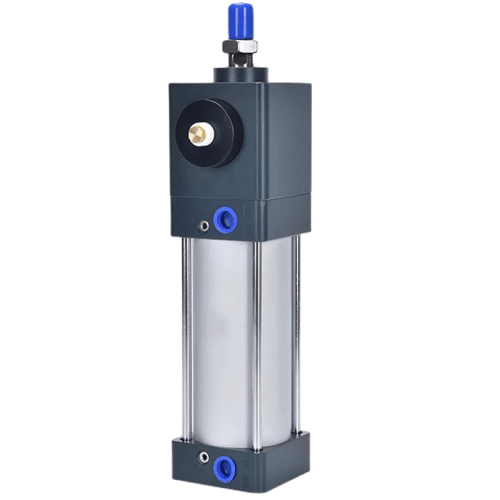

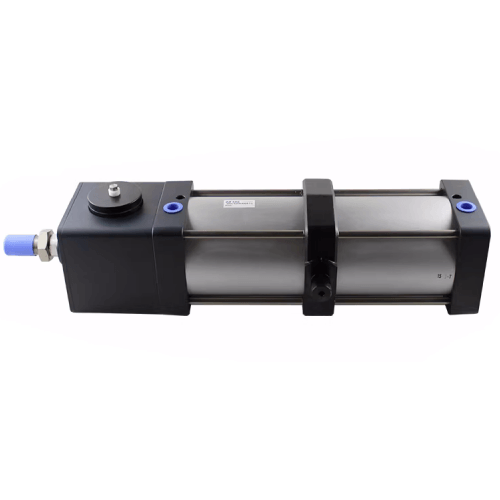

Airtac BSC Clamp Cylinder BSC32X900
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC Series Clamp Cylinder BSC32X900 Technical Details
- Model: BSC32X900
- Type: Double-acting clamp cylinder
- Bore size: 32mm
- Stroke: 900mm
- Operating pressure: 0.1–1.0 MPa
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Mounting type: Fixed flange (MF1) / Basic
- Rod thread: M12×1.25
- Cushioning: Adjustable air cushion (both ends)
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal type: NBR seals (standard), optional FKM
- Weight: 3.8 kg ±2%
- Dimensions: 1030mm(L) × 55mm(W) × 55mm(H)
- Protection class: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (DOP mist compatible)
High-rigidity clamping cylinder with extended stroke capability, featuring precision-ground rod and double anti-rotation design. The anodized barrel resists scoring in high-cycle applications. Includes magnetic piston for position sensing compatibility (sensor not included). Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Automated welding fixture systems
- Large-format CNC router material clamping
- Sheet metal bending press tooling
- Automotive assembly line positioning jigs
- Solar panel lamination equipment
Installation guidelines:
Support rod end with linear bearing when stroke exceeds 500mm.
Maintain 0.5-1mm alignment tolerance during mounting.
Cycle rate should not exceed 80% of maximum rating for continuous operation.
| Property | Property Value |
|---|---|
| sku | BSC32X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | Bore 32mm |
| Stroke | <900mm> |
| Static Holding Force | 600N |
