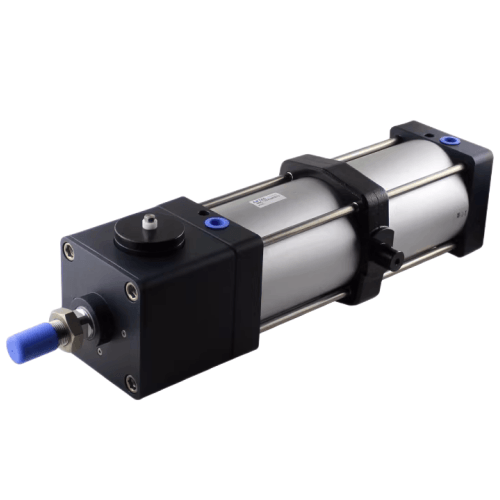

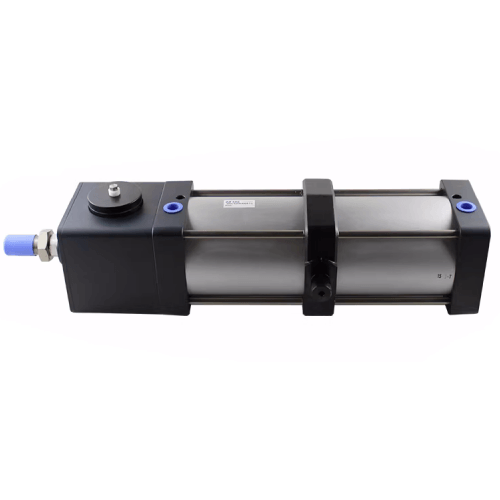

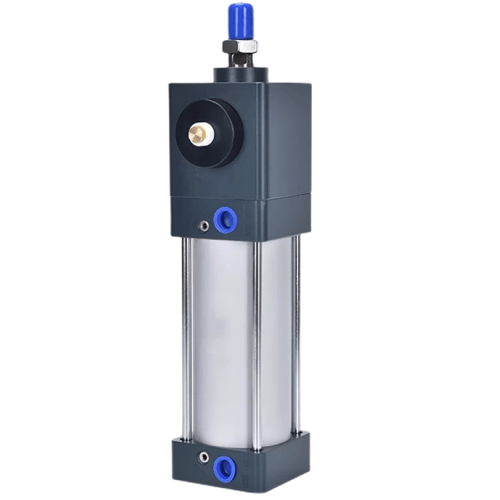

Airtac BSC Clamp Cylinder BSC32X900S
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC Series Clamp Cylinder BSC32X900S Technical Details
- Model: BSC32X900S
- Type: Double-acting compact clamp cylinder
- Bore size: 32mm
- Stroke: 900mm
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable rubber buffer + air cushion
- Mounting style: Basic type (no built-in mounting)
- Port size: M5x0.8 (standard), G1/8 optional
- Piston rod material: Chrome-plated carbon steel (S45C)
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: Heat-resistant NBR (-20℃ to 100℃)
- Weight: 4.7kg (with rod)
- Dimensions: 1,080mm(L) × 50mm(W) × 50mm(H)
- Max thrust: 226N @0.5MPa
- Speed range: 50–700mm/s
- Protection rating: IP54 (standard wiper seal)
High-rigidity clamping cylinder with extended stroke capability, featuring dual cushioning system for shock absorption in long-stroke applications. The hard oxide coating provides exceptional wear resistance against lateral forces during clamping operations. Requires 5μm filtered air with ISO 8573-1:2010 Class 3 air quality.
- Automated welding fixture positioning systems
- CNC machine tool workpiece clamping
- Battery module assembly presses
- Sheet metal bending machine hold-down mechanisms
- Plastic injection molding ejector retention
Installation guidelines:
Support rod end with linear bearing when stroke exceeds 500mm.
Maintain 0.5–1mm clearance between clamp jaws and cylinder body
to prevent side load damage. Lubricate with ISO VG32 hydraulic oil
if operating below -10℃.
| Property | Property Value |
|---|---|
| sku | BSC32X900S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | Bore 32mm |
| Stroke | <900mm> |
| Static Holding Force | 600N |
