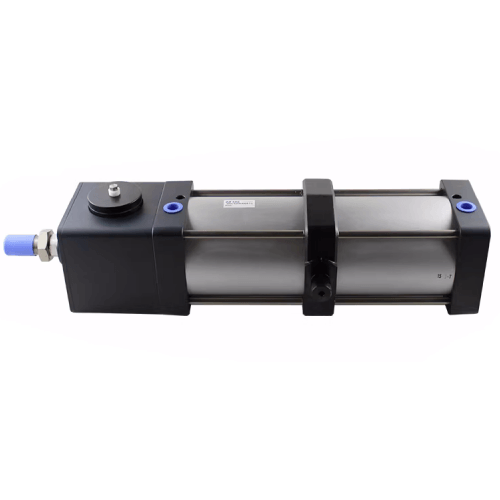

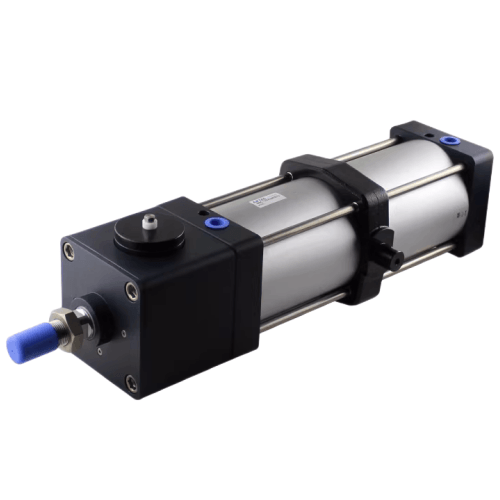

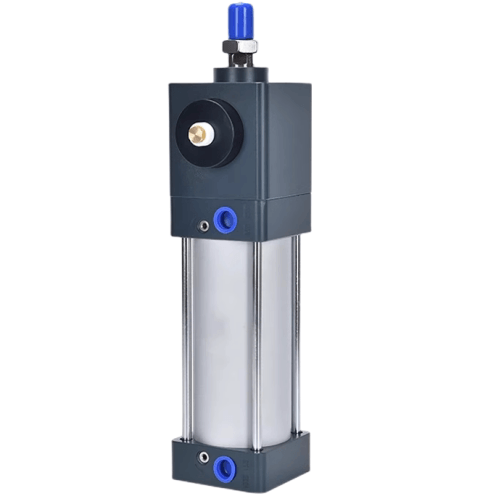

Airtac BSC Clamp Cylinder BSC40X200S
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC40X200S Clamp Cylinder Technical Specifications
- Model: BSC40X200S
- Type: Double-acting compact clamp cylinder
- Bore size: 40mm
- Stroke: 200mm
- Operating pressure: 0.05–0.9 MPa
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable rubber buffer
- Port size: M5x0.8 (standard), G1/8 optional
- Rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 2.8 kg (with standard accessories)
- Dimensions: 300mm(L) × 48mm(W) × 48mm(H)
- Mounting type: Basic front flange (ISO 15552 compatible)
- Position detection: Built-in magnet for sensor installation
The BSC40X200S features a space-saving design with 15% reduced length compared to standard cylinders. Its enhanced lateral load capacity (up to 50% improvement over previous models) makes it ideal for precision clamping applications. The cylinder incorporates a dust-resistant scraper and IP66-rated construction for harsh environments.
- Automated fixture clamping in CNC machining centers
- Workpiece positioning in robotic welding systems
- Press-fit operations in electronic assembly lines
- Material handling gripper mechanisms
- Mold clamping in injection molding machines
Installation recommendation:
For vertical mounting applications exceeding 0.5 MPa pressure,
use additional guide mechanisms to prevent piston rod deflection.
Lubricate with ISO VG32 hydraulic oil during initial installation.
| Property | Property Value |
|---|---|
| sku | BSC40X200S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | 40mm |
| Stroke | <200mm> |
| Static Holding Force | 900N |
