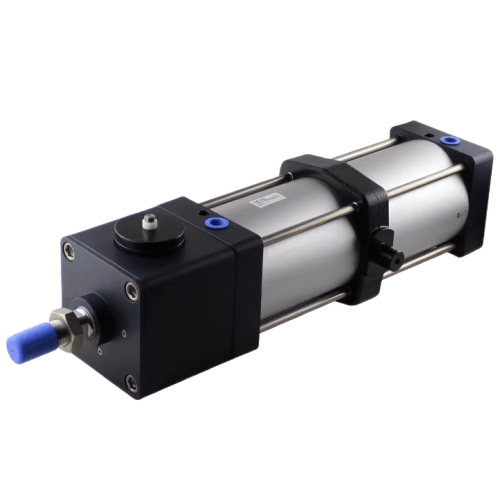

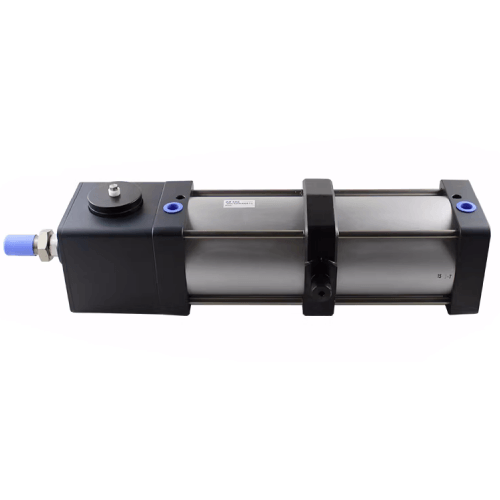

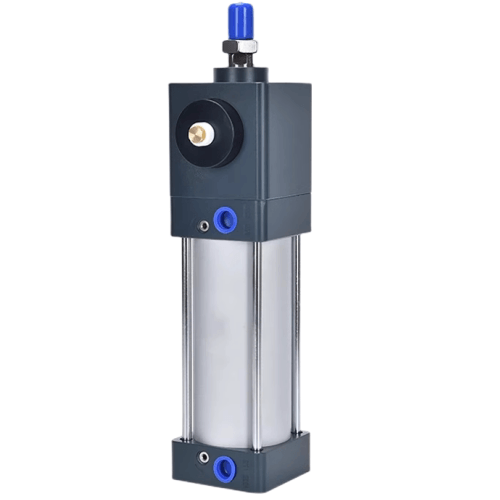

Airtac BSC Clamp Cylinder BSC63X250S
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC63X250S Clamp Cylinder Specifications
- Model: BSC63X250S
- Type: Double-acting compact clamp cylinder
- Bore size: Ø63mm
- Stroke: 250mm
- Operating pressure: 0.05–0.9 MPa
- Cushioning type: Adjustable rubber buffer (both ends)
- Material: Aluminum alloy body (anodized), CR-SEALS
- Port size: G1/8 (ISO standard thread)
- Temperature range: -20℃ to 80℃
- Weight: 2.65kg ±3%
- Dimensions: 350mm(L) × 80mm(W) × 80mm(H)
- Rod thread: M12×1.25 (external)
- Mounting type: Front flange with 4×M6 tapped holes
- Max thrust: 1,960N @0.63MPa
- Piston speed: 50–800mm/s
- Protection rating: IP54 (standard seals)
High-precision clamping cylinder with space-saving design, featuring integrated mounting flanges and reinforced guide bearings. The hardened piston rod (Cr-Mo steel) and dual lip seals ensure reliable operation in high lateral load applications. Requires ISO VG32 hydraulic oil lubrication for optimal performance.
- Workpiece fixturing in CNC machining centers
- Robotic arm end-effector positioning
- Pallet locking in automated assembly lines
- Mold clamping in injection molding machines
- Material handling system stoppers
Installation note:
Maintain 0.05–0.1mm clearance between clamp surface and workpiece.
Use anti-rotation brackets when handling torsional loads. Lubricate every
500km of cumulative stroke operation.
| Property | Property Value |
|---|---|
| sku | BSC63X250S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | <250MM> → <250mm> |
| Static Holding Force | 2200N |
