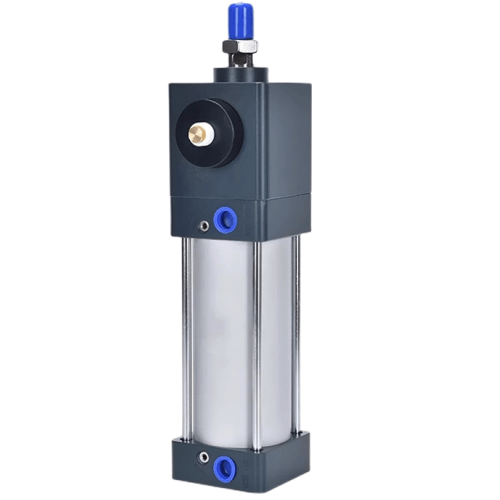

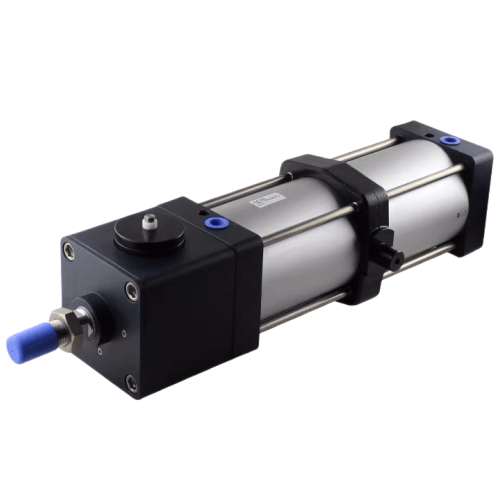

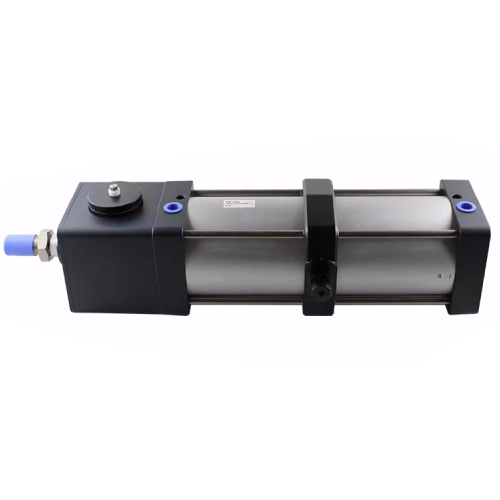

Airtac BSC Clamp Cylinder BSC63X600
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC Series Clamp Cylinder BSC63X600 Technical Details
- Model: BSC63X600
- Type: Double-acting compact clamp cylinder
- Bore size: Ø63mm
- Stroke: 600mm
- Operating pressure: 0.1–0.9 MPa
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable rubber buffer
- Material: Aluminum alloy body (anodized), CRMo steel piston rod
- Seal material: NBR/PU compound seals
- Temperature range: -20℃ to 80℃
- Mounting type: Standard ISO 15552 front flange with 4xM6 threads
- Weight: 6.8 kg (with standard accessories)
- Dimensions: 700mm(L) × 82mm(W) × 82mm(H)
- Port size: G1/8 (two ports)
- Rod end type: M16×1.5 external thread
- Protection class: IP54 (standard), optional IP67
High-rigidity clamping cylinder featuring anti-rotation mechanism and precision ground piston rod. The hexagonal body design prevents rotation during operation, making it ideal for precision positioning tasks. Includes magnetic piston for sensor compatibility and maintenance-free lubrication for 3,000km stroke life.
- Automated welding fixture clamping systems
- CNC machine tool workpiece positioning
- Die-casting mold locking mechanisms
- Robotic arm end-effector gripping
- Packaging machine product alignment
Installation guidelines:
Ensure proper alignment of anti-rotation grooves with mounting bracket.
Use locknuts with 15-20N·m torque for rod-end connections.
Maintain 0.3-0.5MPa air pressure for optimal gripping force.
Lubricate every 5 million cycles using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | BSC63X600 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 600mm |
| Static Holding Force | 2200N |
