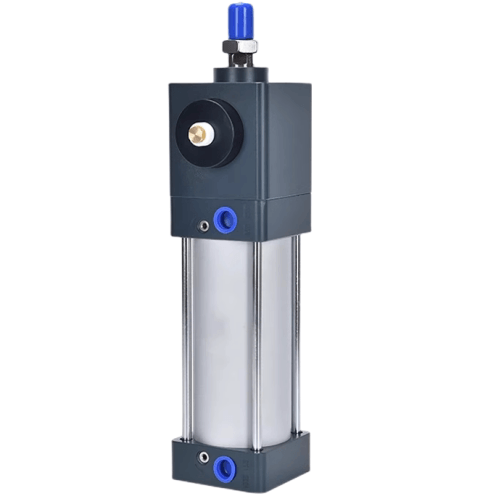

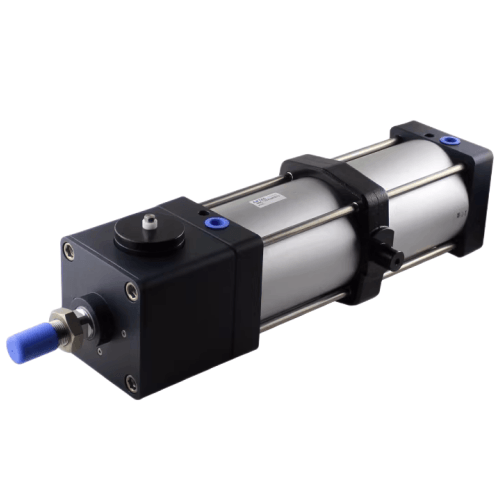

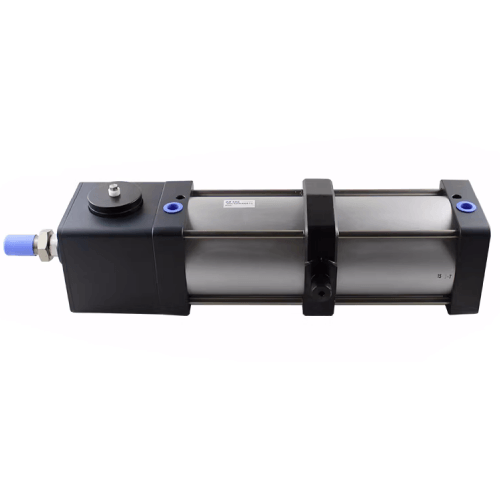

Airtac BSC Clamp Cylinder BSC63X600S
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC63X600S Clamping Cylinder Specifications
- Model: BSC63X600S
- Type: Double-acting cylinder with integrated mechanical brake
- Bore size: Ø63mm
- Stroke: 600mm
- Operating pressure: 0.05-1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Port size: M5x0.8 (standard), G1/8 optional
- Mounting type: Basic fixed (MF1) with front flange
- Barrel material: Anodized aluminum alloy
- Piston rod material: Chrome-plated steel (S45C)
- Seal material: NBR (Nitrile rubber)
- Brake force: 650N (at 0.5MPa)
- Weight: 2.8kg (excluding accessories)
- Dimensions: 738mm(L) × 80mm(W) × 80mm(H)
- Brake response time: ≤0.2s
- Protection rating: IP54 (standard)
High-precision clamping cylinder featuring instant mechanical braking for vertical load holding. The dual-piston brake mechanism provides fail-safe position locking even during pressure loss. Enhanced wear resistance with hardened guide sleeves and tungsten-coated brake pads. Requires 40μm filtered lubricated air (ISO 8573-1).
- Vertical lifting systems in automated warehouses
- Fixture positioning in CNC machining centers
- Overhead conveyor emergency stops
- Robotic welding jig stabilization
- Die casting machine mold locking
Installation note:
Brake activation requires separate 0.3-0.6MPa control pressure. Always engage brake before
system depressurization. Lubricate piston rod weekly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | BSC63X600S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 600mm |
| Static Holding Force | 2200N |
