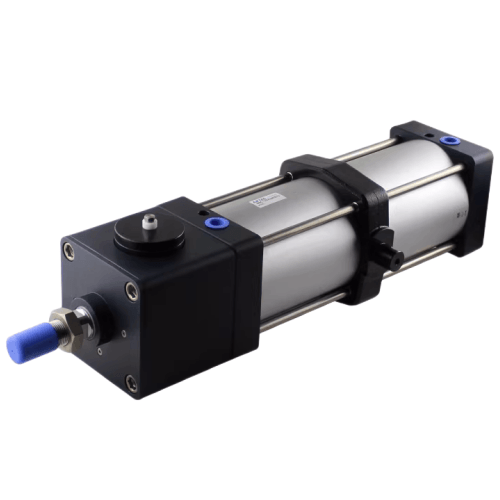

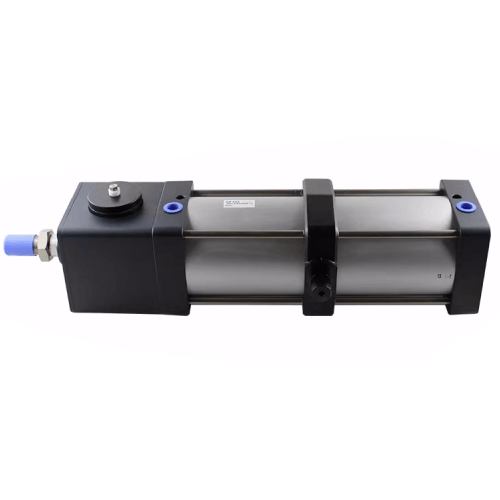

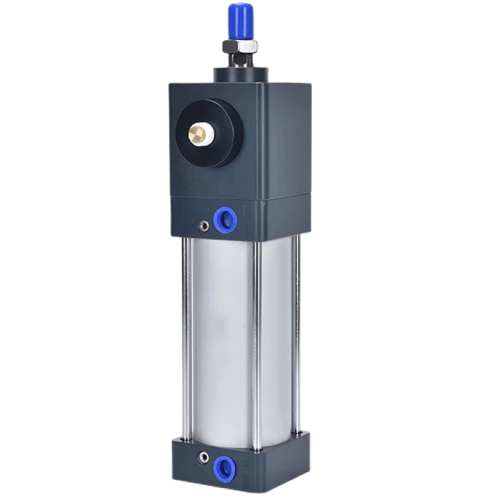

Airtac BSC Clamp Cylinder BSC63X800
$287.76
Regular price
$295.26
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BSC63X800
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、An integrated derivative series combining standard cylinders with precision clamping mechanisms;
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
Installation note:
Ensure proper alignment of clamping surfaces (max 0.2mm/m misalignment tolerance).
Use locknuts with 25-30 N·m torque for mounting. Lubricate guide shafts monthly
with ISO VG32 hydraulic oil in continuous operation.
2、Enables intermediate stroke locking at any position throughout the piston travel;
3、Incorporates a bi-directional locking system where clamping engagement remains effective independent of piston motion direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSC
AirTAC BSC63X800 Clamp Cylinder Technical Specifications
- Model: BSC63X800
- Type: Double-acting clamp cylinder with mechanical lock
- Bore size: Ø63 mm
- Stroke: 800 mm
- Operating pressure: 0.05-1.0 MPa
- Piston speed: 50-700 mm/s
- Cushion type: Adjustable rubber buffer (both ends)
- Mounting style: Standard MF1 (front flange) with optional mounting accessories
- Rod end thread: M20×1.5 (ISO standard)
- Weight: 5.8 kg (excluding accessories)
- Dimensions:
- Extended length: 1,080 mm
- Retracted length: 280 mm
- Body diameter: 80 mm
- Seal material: Polyurethane (PU) with wear-resistant ring
- Temperature range: -10℃ to 80℃
- Lubrication: Pre-lubricated (DOP anti-wear oil)
- Protection rating: IP54 (standard), IP67 optional
High-rigidity clamping cylinder featuring dual piston locks for secure workpiece fixation. The hardened stainless steel piston rod and double-seal structure ensure reliable performance in high vibration environments. Includes magnetic switch grooves for position feedback compatibility.
Typical Applications:
- CNC machine tool workpiece clamping
- Automated welding fixture systems
- Heavy-duty material handling grippers
- Press brake tooling positioning
- Plastic injection mold locking mechanisms
Installation note:
Ensure proper alignment of clamping surfaces (max 0.2mm/m misalignment tolerance).
Use locknuts with 25-30 N·m torque for mounting. Lubricate guide shafts monthly
with ISO VG32 hydraulic oil in continuous operation.
| Property | Property Value |
|---|---|
| sku | BSC63X800 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 800mm |
| Static Holding Force | 2200N |
