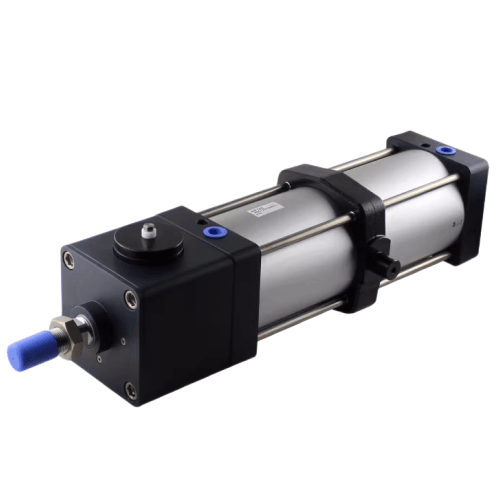

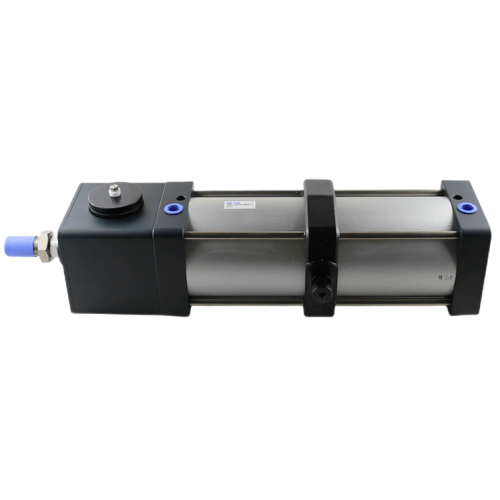

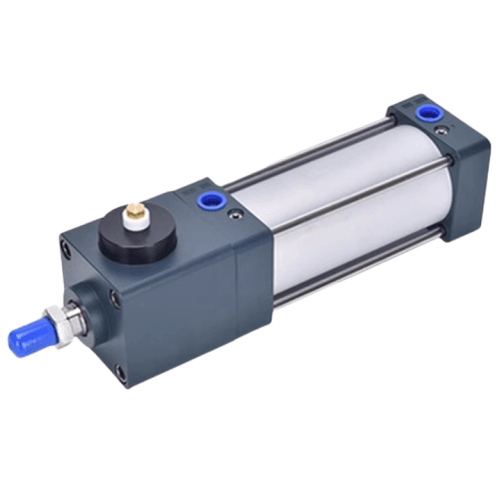

Airtac BSCD Clamp Cylinder BSCD125X900S
$801.64
Regular price
$809.14
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BSCD125X900S
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、BSCD series is a derivative product line combining standard cylinder with integrated clamping device;
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
Maintenance tip:
Lubricate every 3,000km of stroke travel. Use rod wiper cleaning kit (AIRTAC AMK-12)
when operating in environments with metal particulates. Maintain 0.3-0.6 MPa pressure
during initial run-in period (first 500 cycles).
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD125X900S Clamp Cylinder Technical Specifications
- Model: BSCD125X900S
- Type: Double-acting clamp cylinder
- Bore size: Ø125mm
- Stroke: 900mm (±0.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Cushioning: Adjustable hydraulic shock absorber (both ends)
- Mounting style: FA-type foot mounting (standard), optional flange/clevis
- Port size: G1/2 (BSPP thread)
- Temperature range: -20℃ to 80℃
- Piston material: Hard anodized aluminum alloy
- Rod material: Chrome-plated steel (Cr12MoV)
- Seal type: NBR seals with wear-resistant ring
- Weight: 15.8kg (without accessories)
- Dimensions: 950mm(L) × 180mm(W) × 180mm(H)
- Max thrust: 12,272N @ 0.63MPa
- ISO standard: 15552 compliant
High-force clamping cylinder with integrated guide mechanism, featuring anti-rotation design for precision positioning. The hardened piston rod and triple-lip seals ensure reliable operation in high-cycle applications. Requires 40μm filtered air with lubrication (ISO VG32 recommended).
Industrial Applications:
- Fixture clamping in CNC machining centers
- Mold locking systems for injection molding
- Heavy workpiece positioning in automotive assembly
- Press brake tooling systems
- Pallet clamping in automated warehouses
Maintenance tip:
Lubricate every 3,000km of stroke travel. Use rod wiper cleaning kit (AIRTAC AMK-12)
when operating in environments with metal particulates. Maintain 0.3-0.6 MPa pressure
during initial run-in period (first 500 cycles).
| Property | Property Value |
|---|---|
| sku | BSCD125X900S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT 1/2 |
| Magnet | S-Magnetic |
| Bore Diameter | 125mm |
| Stroke | <900mm> |
| Static Holding Force | 8600N |
