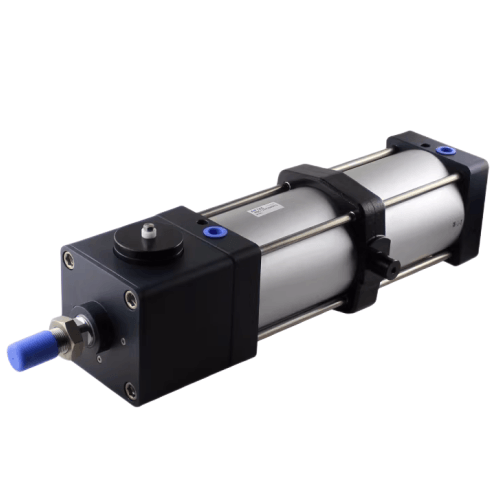

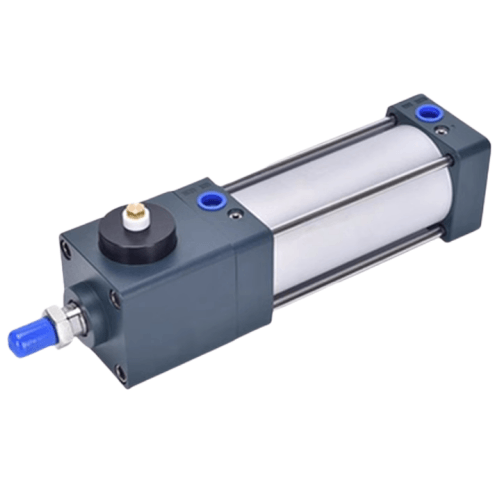

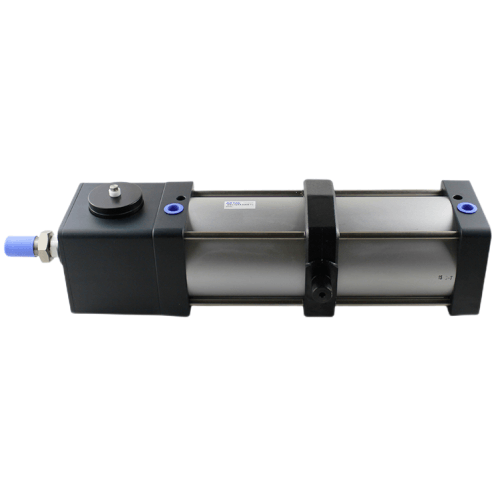

Airtac BSCD Clamp Cylinder BSCD32X800
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD32X800 Clamping Cylinder Specifications
- Model: BSCD32X800
- Type: ISO 6432 standard compact double-acting cylinder
- Bore size: 32 mm
- Stroke: 800 mm
- Operating pressure: 0.05–1.0 MPa
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Cushioning: Adjustable rubber buffer + shock absorber
- Mounting style: Basic foot mount (MF1) / Rod flange optional
- Piston rod thread: M12x1.25
- Seal material: Nitrile rubber (NBR) / Polyurethane (PU) available
- Temperature range: -20℃ to 80℃
- Weight: 3.8 kg (with rod) / 3.2 kg (body only)
- Dimensions:
- Body diameter: 32 mm ±0.1
- Extended length: 882 mm (stroke + end caps)
- Retracted length: 82 mm
- Rod length: 800 mm + thread engagement
- Protection class: IP54 (standard) / IP67 with optional wipers
The BSCD32X800 features an ultra-long stroke design with precision-ground stainless steel rod (Chromium Plating) for anti-corrosion. Its dual cushioning system reduces end-impact noise to ≤65 dB. The anodized aluminum barrel ensures heat dissipation during high-cycle operations (recommended ≤200 CPM). Includes built-in auto-lubrication grooves for maintenance-free operation up to 5,000 km travel life.
- Automated warehouse pallet clamping systems
- Sheet metal stretching in automotive assembly
- Long-span material transfer bridges
- Plastic injection molding ejector mechanisms
- Solar panel cleaning robot arm actuators
Installation note:
Requires rigid mounting surface (flatness ≤0.1mm/m) and coaxial alignment within ±0.5°.
For strokes >500mm, support rails recommended to prevent rod sagging. Lubricate with ISO VG32
hydraulic oil if operating below -10℃.
| Property | Property Value |
|---|---|
| sku | BSCD32X800 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <32 mm> |
| Stroke | 800mm |
| Static Holding Force | 600N |
