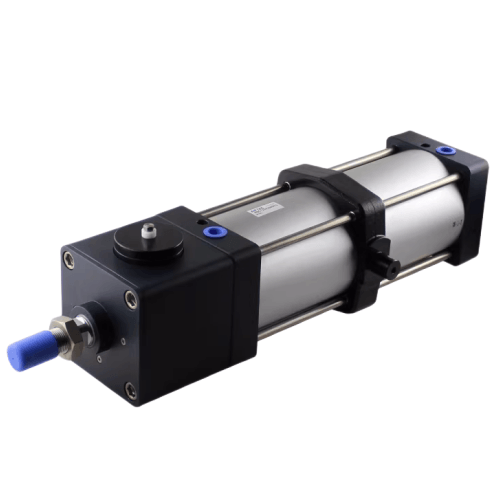

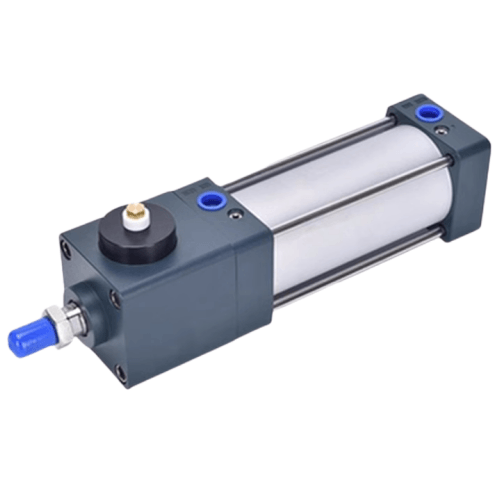

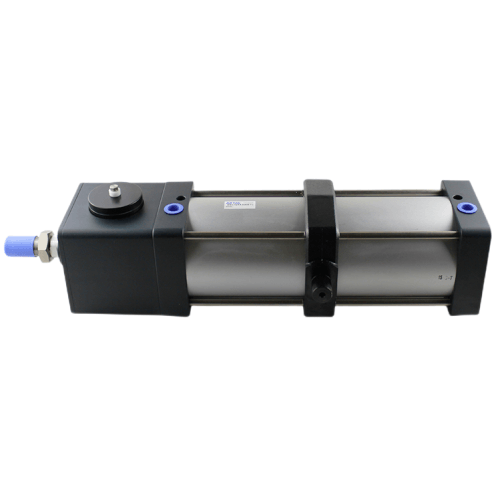

Airtac BSCD Clamp Cylinder BSCD40X900
$238.44
Regular price
$245.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BSCD40X900
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、BSCD series is a derivative product line combining standard cylinder with integrated clamping device;
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
Installation guidelines:
Requires minimum 0.3mm/m alignment tolerance. For vertical installations,
use auxiliary rod support brackets when stroke exceeds 500mm. Lubricate
through air supply (ISO VG32 recommended) with 1-2 drops/min oil mist.
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD Series Clamp Cylinder BSCD40X900 Technical Details
- Model: BSCD40X900
- Type: Double-acting compact clamp cylinder
- Bore size: 40mm
- Stroke: 900mm
- Operating pressure: 0.05–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Port size: Rc1/4 (G1/4 optional)
- Cushioning: Adjustable rubber buffer + air cushion
- Piston speed: 50–800 mm/s
- Mounting type: Basic (no built-in mount)
- Rod material: Hard chrome-plated steel
- Seal material: NBR (Nitrile) standard
- Weight: 5.8 kg ±2%
- Dimensions (L×W×H):
- Retracted length: 1,078mm
- Extended length: 1,978mm
- Body width: 62mm
- Mounting height: 40mm
High-rigidity clamping cylinder with extended stroke capability, featuring dual cushioning system for smooth deceleration. The anodized aluminum body with corrosion-resistant coating ensures durability in humid environments. Requires ISO 8573-1:2010 [3:4:3] class compressed air.
Industrial Applications:
- Automated material handling systems
- Plastic injection molding machine clamps
- PCB panel positioning fixtures
- Automotive welding jig mechanisms
- Solar panel assembly line retention
Installation guidelines:
Requires minimum 0.3mm/m alignment tolerance. For vertical installations,
use auxiliary rod support brackets when stroke exceeds 500mm. Lubricate
through air supply (ISO VG32 recommended) with 1-2 drops/min oil mist.
| Property | Property Value |
|---|---|
| sku | BSCD40X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <40mm> |
| Stroke | <900mm> |
| Static Holding Force | 900N |
