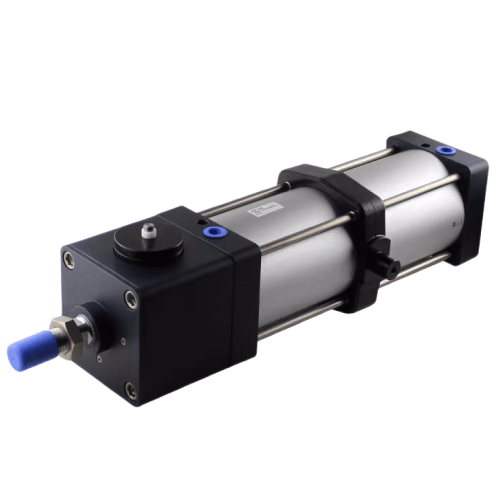

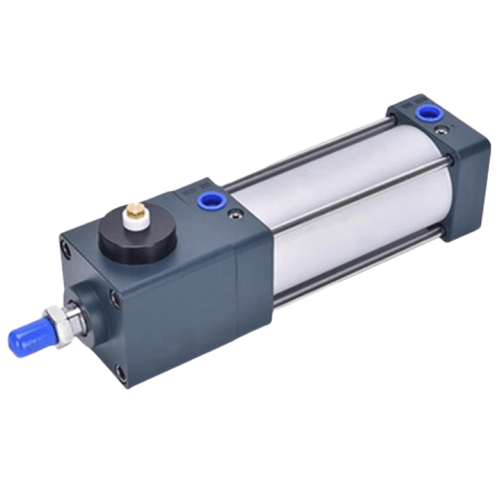

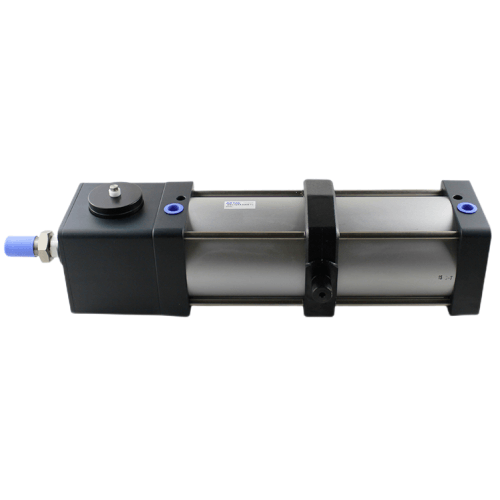

Airtac BSCD Clamp Cylinder BSCD40X900S
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD40X900S Clamp Cylinder Specifications
- Model: BSCD40X900S
- Type: Double-acting compact clamp cylinder
- Bore size: 40mm
- Stroke: 900mm
- Operating pressure: 0.15-0.8 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Front/rear flange or foot mounting
- Port size: 1/4" NPT (G1/8 optional)
- Piston rod thread: M16×1.5
- Cylinder tube material: Aluminum alloy with hard anodized surface
- Rod material: Chrome-plated carbon steel
- Seal material: NBR (Nitrile rubber)
- Weight: 5.8kg (with standard accessories)
- Dimensions: 1015mm(L) × 58mm(W) × 58mm(H)
- ISO standard: ISO 6432 (25mm-100mm bore series)
High-precision clamping cylinder featuring an ultra-long stroke design with reinforced rod guidance system. The BSCD series incorporates dual anti-rotation guides (keyway structure) for stable gripping operations. Special wear-resistant band design ensures smooth movement even at maximum extension. Requires ISO VG32 hydraulic oil mist lubrication for optimal performance.
- Automated fixture systems in CNC machining centers
- Pallet clamping in FMS (Flexible Manufacturing Systems)
- Large-format printing press roller engagement
- Solar panel assembly line positioning
- Battery module compression in EV manufacturing
Installation note:
Requires lateral support brackets when stroke exceeds 500mm.
Maintain 0.5-1mm clearance between clamp jaws and workpiece surface
during initial positioning. Lubricate guide shafts monthly with
EP2 grease under high-cycle conditions.
| Property | Property Value |
|---|---|
| sku | BSCD40X900S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | <900mm> |
| Static Holding Force | 900N |
