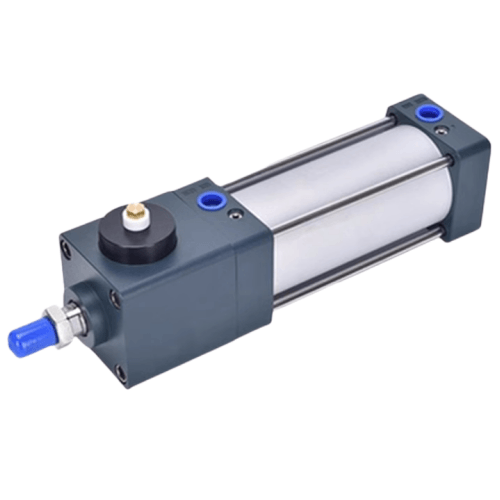

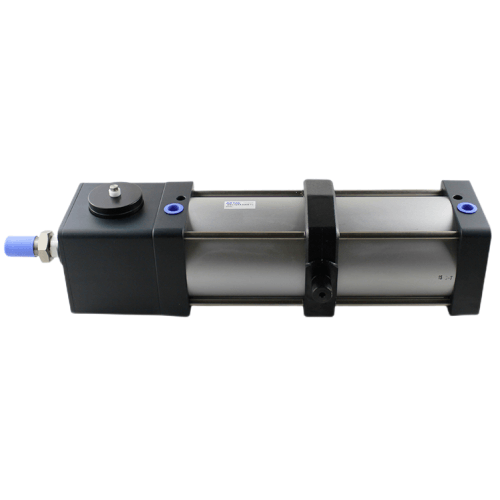

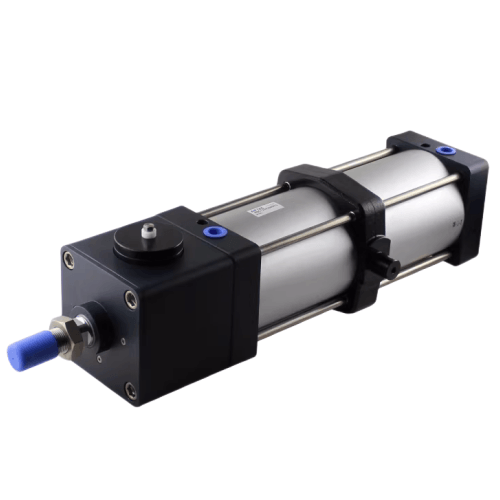

Airtac BSCD Clamp Cylinder BSCD63X900S
2、Enables locked stoppage at any position within the stroke range during operation;
3、Features optimized clamping mechanism that maintains locking state regardless of piston movement direction.
Category: Standard Cylinders , Brand: AirTAC , Series: BSCD
AirTAC BSCD63X900S Clamping Cylinder Specifications
- Model: BSCD63X900S
- Type: Double-acting clamp cylinder with mechanical lock
- Bore size: 63 mm
- Stroke: 900 mm
- Operating pressure: 0.05–1.0 MPa
- Cushioning type: Adjustable hydraulic buffer (both ends)
- Temperature range: -20℃ to 80℃
- Mounting style: Front flange (ISO 15552 standard)
- Port size: G1/8 (NPT1/4 optional)
- Piston rod thread: M20×1.5
- Material: Aluminum alloy barrel, hardened chromium-plated rod
- Seal material: NBR + PU combination
- Weight: 12.8 kg (with standard accessories)
- Dimensions: 1085mm(L) × 80mm(W) × 80mm(H)
- Protection rating: IP54 (standard), IP67 (optional)
- Max piston speed: 500–800 mm/s
High-rigidity clamping cylinder featuring a mechanical locking mechanism for position retention under load. The integrated wedge-style brake provides 2.5kN holding force even during power loss. Precision ground rod and multi-layered sealing system ensure leak-free operation in dirty environments. Requires ISO VG32 hydraulic oil for buffer adjustment.
- Vertical lifting systems in automated warehouses
- Workpiece fixturing in CNC machining centers
- Overhead conveyor emergency stops
- Press brake tooling positioning
- Robotic welding station jigs
Installation note:
Engage locking mechanism before system pressurization. Lubricate guide shafts monthly with ISO-L-HM 32 oil.
Avoid side-load exceeding 150N during operation. Allow 15mm clearance around cylinder for heat dissipation.
| Property | Property Value |
|---|---|
| sku | BSCD63X900S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | <900mm> |
| Static Holding Force | 2200N |
