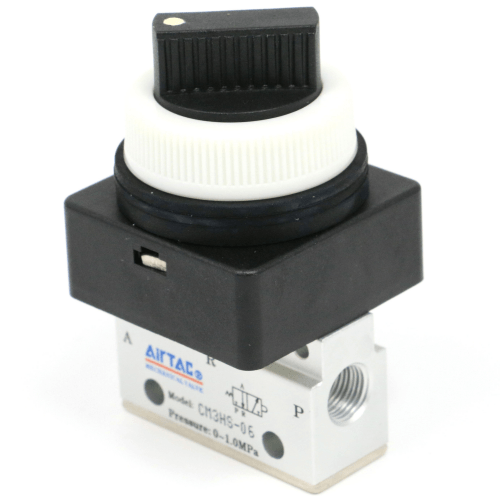

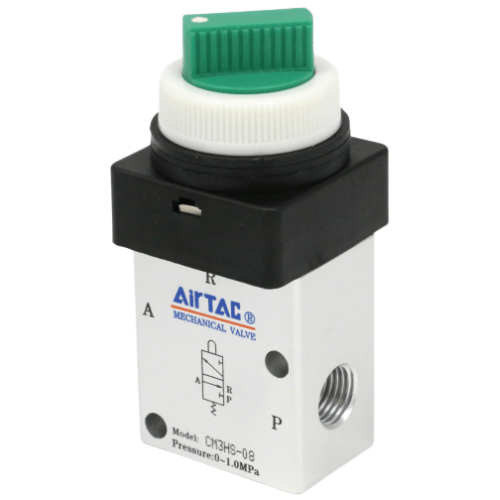

Airtac CM3HS Selector Mechanical Valve CM3HS05G
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS05G Selector Mechanical Valve Technical Details
- Model: CM3HS05G (Selector Series)
- Valve type: 3-position selector valve with center closed
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.2–1.0 MPa
- Maximum flow rate: 1,200 L/min (ANR)
- Actuation type: Manual lever operation with mechanical lock
- Body material: Aluminum alloy (hard anodized)
- Seal material: NBR/FKM optional
- Temperature range: -10℃ to 80℃ (NBR) / -10℃ to 150℃ (FKM)
- Weight: 680g ±2%
- Dimensions: 78mm(L) × 54mm(W) × 124mm(H)
- Mounting style: Sub-base compatible (ISO 5599-1)
- Protection rating: IP67 (dust/water resistant)
- Hysteresis: ≤0.02 MPa
- Leakage: <0.1 mL/min @ 0.5 MPa
High-flow directional control valve with positive center shut-off, featuring a rugged lever-lock mechanism for precise position retention. The dual-surface hardening process ensures 1,000,000+ cycle durability. Optimized flow paths reduce pressure drop by 18% compared to previous generations. Requires 50μm filtration and automatic drain maintenance.
- Pneumatic cylinder control in assembly line automation
- Main air path selector in plastic injection molding machines
- Tooling equipment mode switching (manual/auto)
- Safety circuit isolation in press machinery
- Material handling system diverters
Installation protocol:
Mount horizontally with lever axis parallel to operator's access direction.
Apply thread sealant to port connections (do not over-tighten - max 35N·m).
Perform monthly lubrication of pivot points with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3HS05G |
| Position | 3-Port 2-Position |
| Port Size | M5 |
