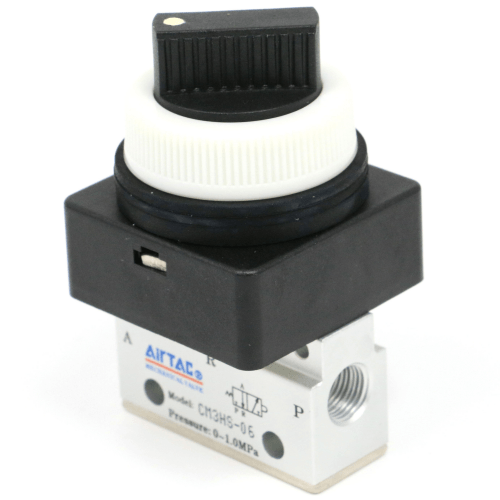

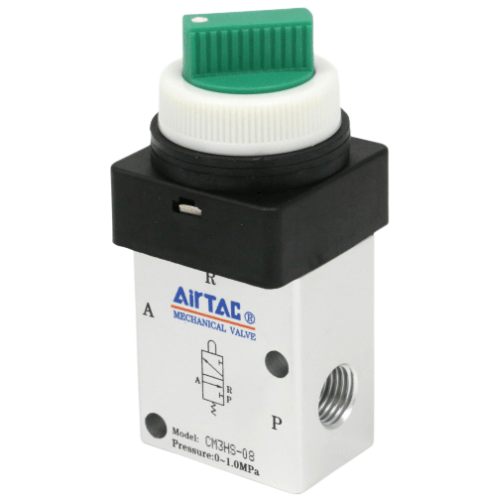

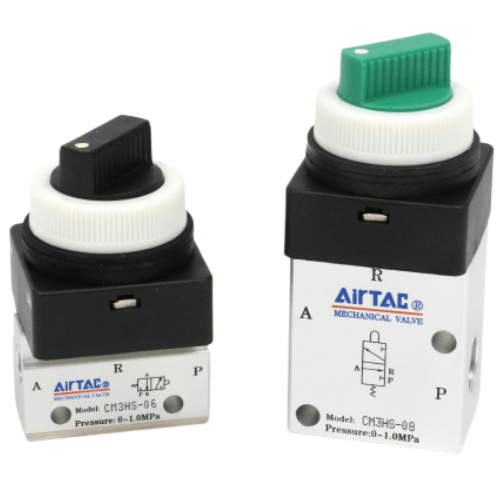

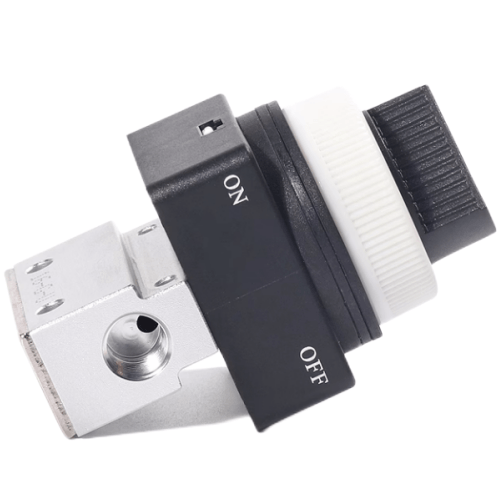

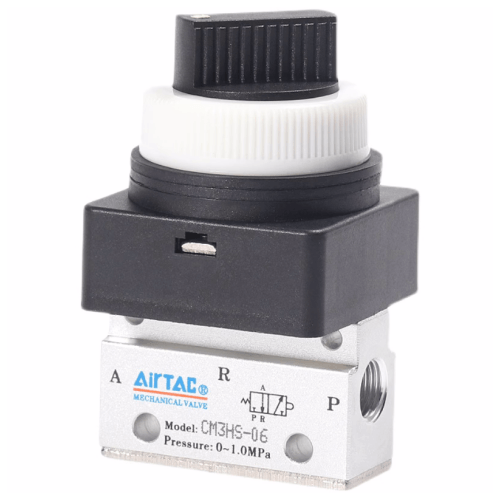

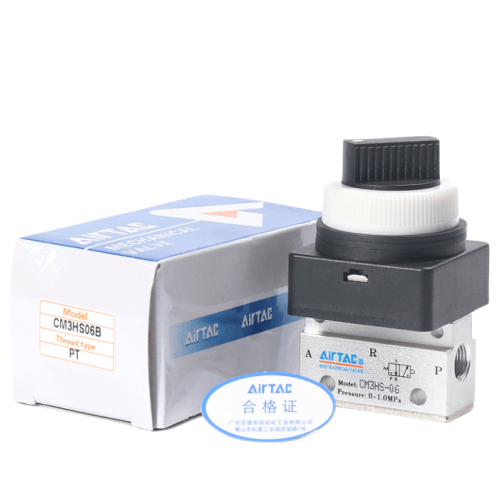

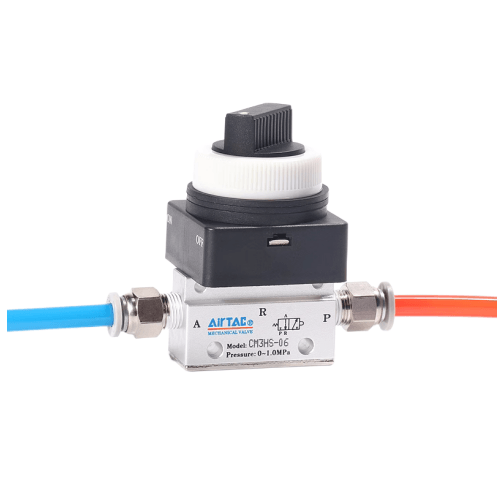

Airtac CM3HS Selector Mechanical Valve CM3HS05Y
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS05Y Selector Mechanical Valve Technical Specifications
- Model: CM3HS05Y
- Type: 3-position selector valve (Manual operation)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: G1/8 (BSPP) / 1/4" NPT optional
- Operating pressure: 0.2–1.0 MPa (29–145 psi)
- Max flow rate: 1,200 NL/min (ANR)
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR (Hydrogenated Nitrile)
- Weight: 480g ±5% (1.06 lbs)
- Dimensions: 68mm(L) × 52mm(W) × 45mm(H) (2.68" × 2.05" × 1.77")
- Mounting: Panel mount with M5 screw holes
- Manual override: Lockable lever with position indicator
- Pressure resistance: 1.5 MPa (217.5 psi) burst pressure
Industrial-grade manual selector valve featuring triple-position control (A/B/neutral) with spring-centered neutral position. The hardened aluminum construction ensures durability in high-vibration environments. Features dual exhaust ports (EA/EB) for rapid system depressurization and visual position confirmation through colored indicator windows.
- Production line safety interlocks
- Pneumatic press mode selection systems
- Material handling equipment direction control
- Test bench pressure circuit switching
- Emergency stop pneumatic override systems
Installation guidelines:
Install with 50mm clearance above lever for full actuation range.
Apply thread sealant on NPT ports. Lubricate pivot point quarterly
with ISO VG32 hydraulic oil. Neutral position alignment must be
verified after mounting.
| Property | Property Value |
|---|---|
| sku | CM3HS05Y |
| Position | 3-Port 2-Position |
| Port Size | M5 |
