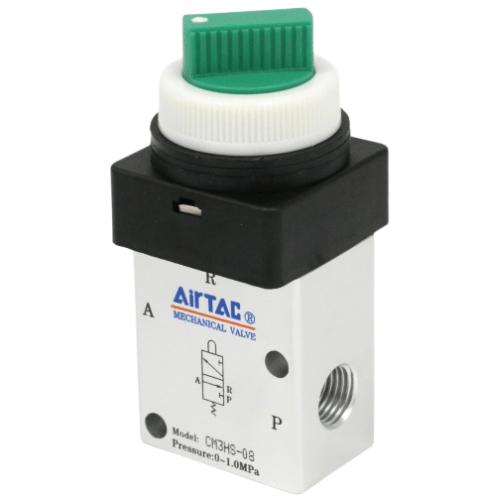

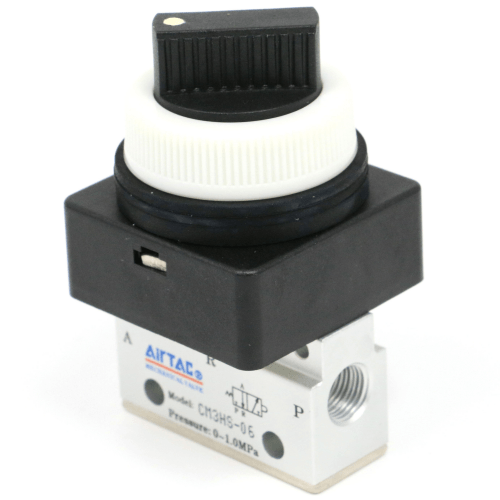

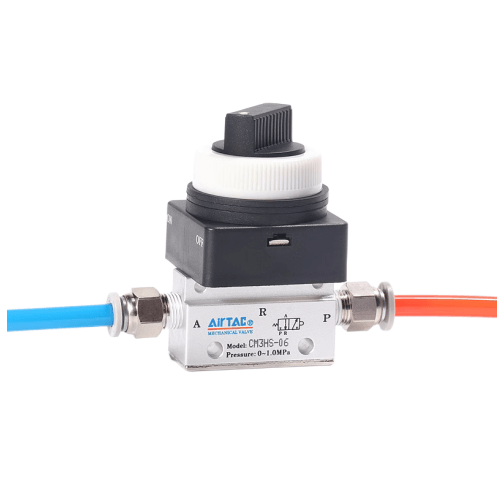

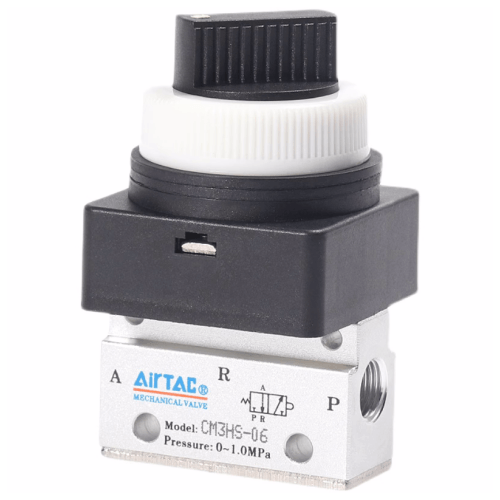

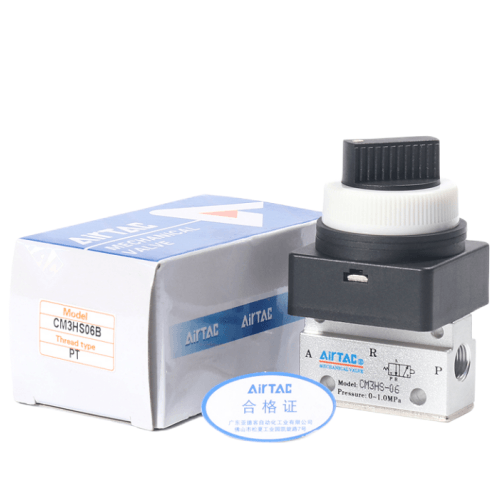

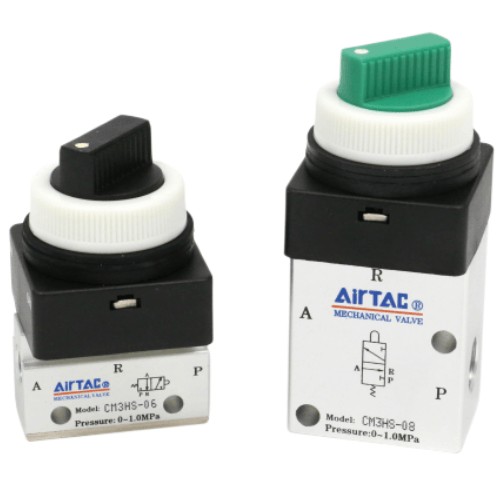

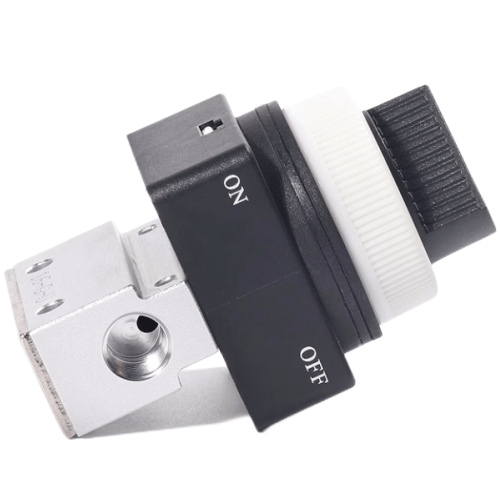

Airtac CM3HS Selector Mechanical Valve CM3HS06-P2
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS Selection-Type Mechanical Valve CM3HS06-P2 Technical Details
- Model: CM3HS06-P2
- Type: 3-position selection valve (center closed)
- Port configuration: 5 ports / 3 positions
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.2–0.8 MPa
- Maximum flow rate: 750 L/min (ANR)
- Actuation type: Manual lever with mechanical lock
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant HNBR (-10℃ to 120℃)
- Weight: 320g ±5g
- Dimensions: 58mm(W) × 45mm(H) × 125mm(L)
- Mounting: Sub-base compatible (ISO 5599-3)
- Temperature range: -10℃ to 60℃ (with silicone grease)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥2 million operations
Heavy-duty mechanical selector valve with positive center positioning, featuring dual O-ring seals and anti-vibration lock mechanism. The chrome-plated lever offers 120° rotation with tactile feedback. Designed for manual override operations in harsh environments, compatible with ISO 5599-3 manifold systems. Requires 5μm filtered air with lubricator (ISO VG32 recommended).
- Production line mode selection systems
- Emergency stop circuits in pneumatic presses
- Manual override for automated packaging machinery
- Process switching in chemical dosing equipment
- Mobile hydraulic/pneumatic hybrid systems
Installation guidelines:
Mount in accessible location with lever movement clearance ≥60mm.
Apply thread sealant to port connections (PTFE tape prohibited).
Perform monthly lubrication of pivot points using MIL-PRF-6083 grease.
| Property | Property Value |
|---|---|
| sku | CM3HS06-P2 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
