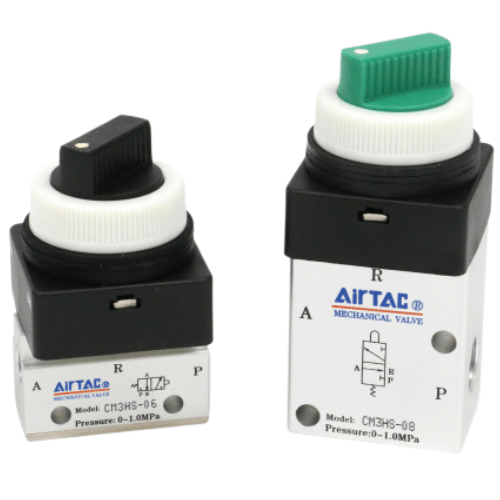

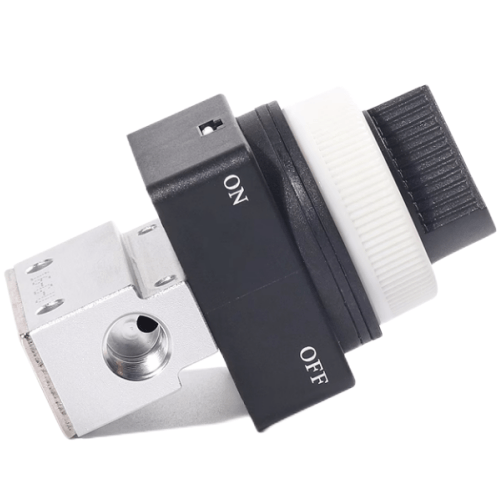

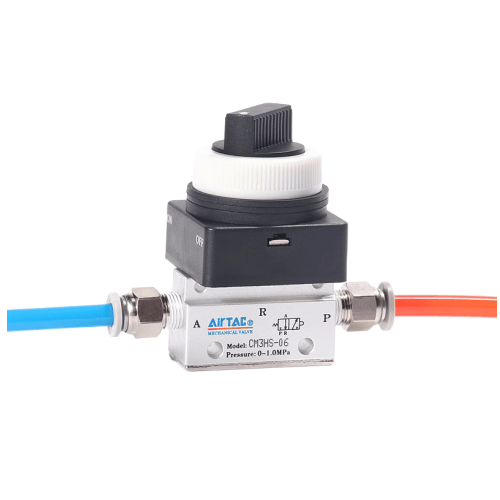

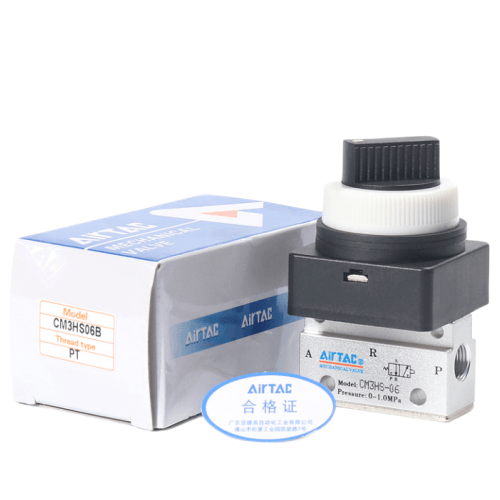

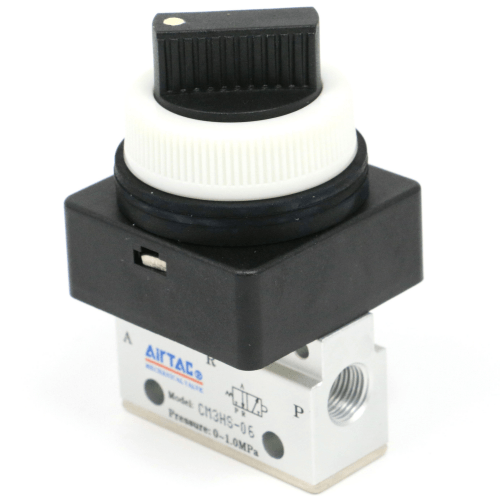

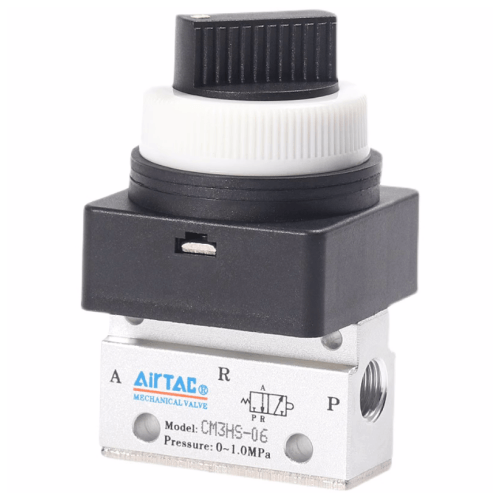

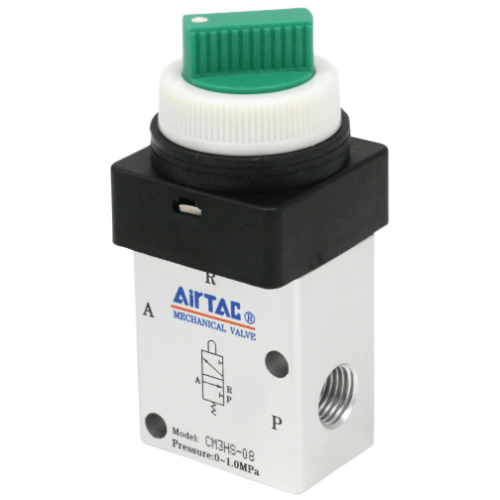

Airtac CM3HS Selector Mechanical Valve CM3HS06G
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS Selector Mechanical Valve CM3HS06G Technical Details
- Model: CM3HS06G
- Type: 3-position selector valve (Manual override)
- Port configuration: 5 ports/3 positions
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Actuation force: ≤3.5 N
- Operating temperature: -5℃ to 80℃
- Body material: Aluminum alloy (anodized)
- Seal material: Fluororubber (FKM)
- Weight: 320g ±5g
- Dimensions: 58mm(L) × 42mm(W) × 76mm(H)
- Mounting: ISO 4400 standard pattern
- Protection rating: IP67 (dust/water resistant)
- Compliance: RoHS 2011/65/EU
Manual selector valve with positive center position lock, designed for precise directional control in harsh environments. Features low operating torque and visual position indicator. Optional locking mechanism prevents accidental switching. Requires ISO 8573-1:2010 Class 3 compressed air.
- Production line emergency stop circuits
- Material handling system diverters
- Hydraulic press mode selection
- Test bench pneumatic routing
- Food processing equipment (FDA-compliant versions available)
Maintenance note:
Lubricate pivot points with ISO VG32 hydraulic oil every 50,000 cycles.
Avoid side-loading during manual operation to prevent shaft deformation.
| Property | Property Value |
|---|---|
| sku | CM3HS06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
