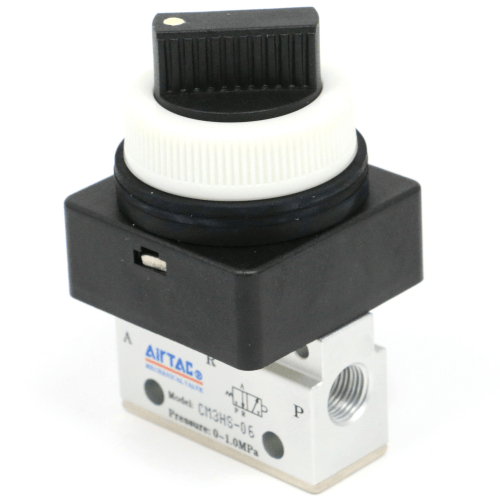

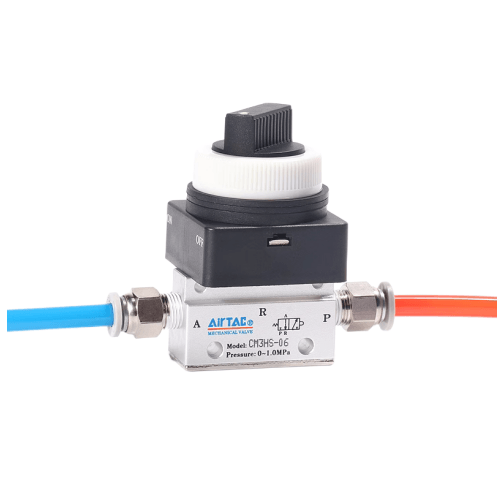

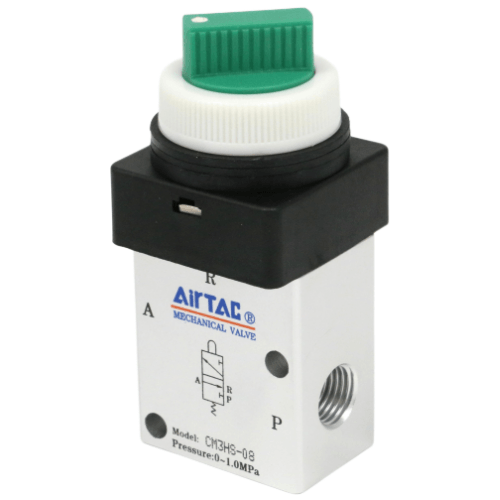

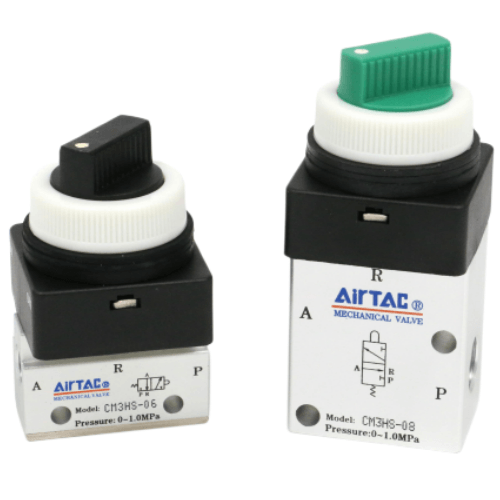

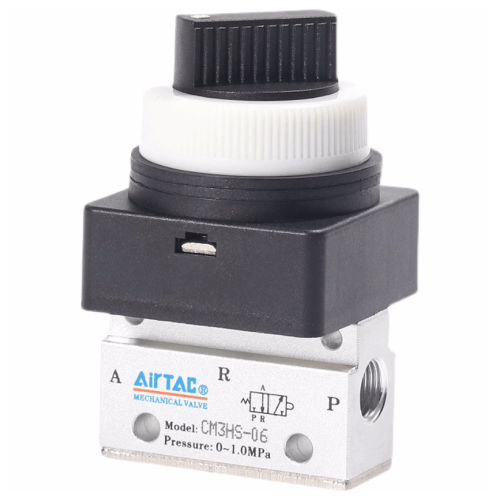

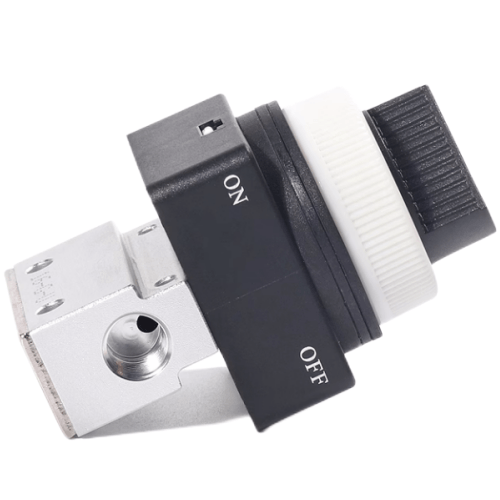

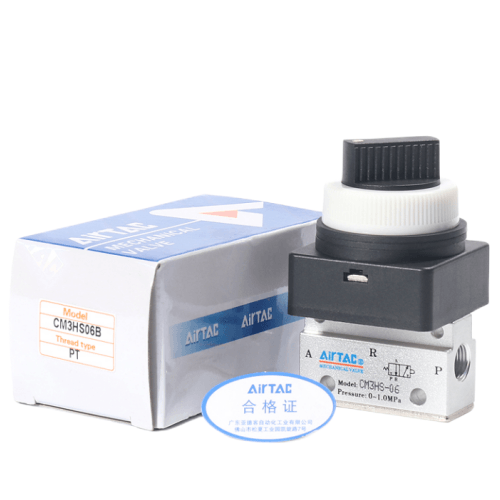

Airtac CM3HS Selector Mechanical Valve CM3HS06R
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS06R Selector Mechanical Valve Technical Details
- Model: CM3HS06R
- Type: 3-position selector valve (Manual operation with detent mechanism)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤3.5 N
- Valve body material: Die-cast aluminum with hard anodizing
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Weight: 220g ±5%
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Mounting: Panel mount with M5 screw holes (4x)
- Exhaust type: Separate exhaust ports with built-in silencers
- Cycle life: ≥1,000,000 operations
Industrial-grade manual selector valve featuring positive center position locking and tactile feedback. The dual-pressure exhaust design prevents cross-contamination between circuits, while the ergonomic lever reduces operator fatigue during frequent switching. Includes anti-vibration seals for stable performance in mobile equipment.
- Production line mode selection systems
- Emergency override controls in automated machinery
- Pneumatic circuit isolation during maintenance
- Multi-process manufacturing equipment (e.g., plastic injection molding)
- Material handling system diverters
Installation guidelines:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
Maintain minimum 50mm clearance below exhaust ports for proper airflow.
Use locking pliers for torque-controlled installation (max 1.2 N·m).
Critical note:
Not compatible with phosphate ester-based lubricants.
Always depressurize both circuits before switching modes to prevent seal damage.
| Property | Property Value |
|---|---|
| sku | CM3HS06R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
