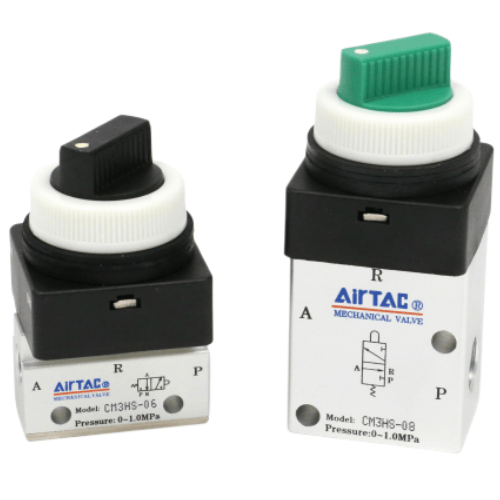

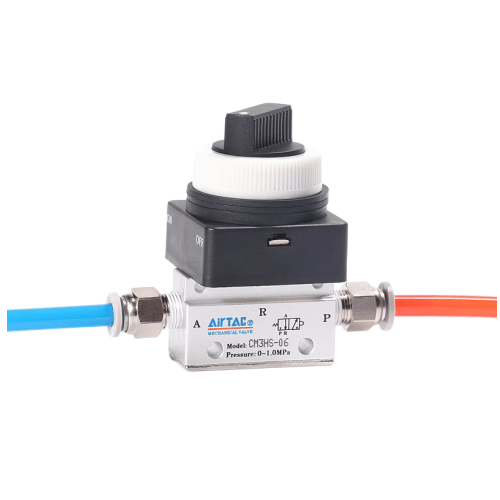

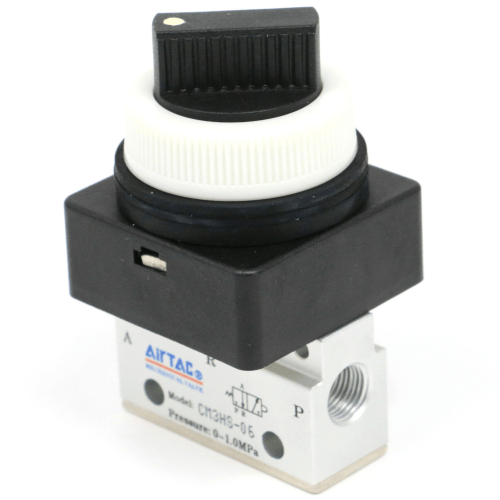

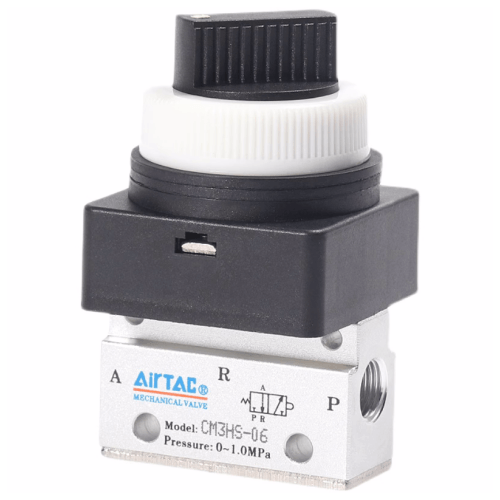

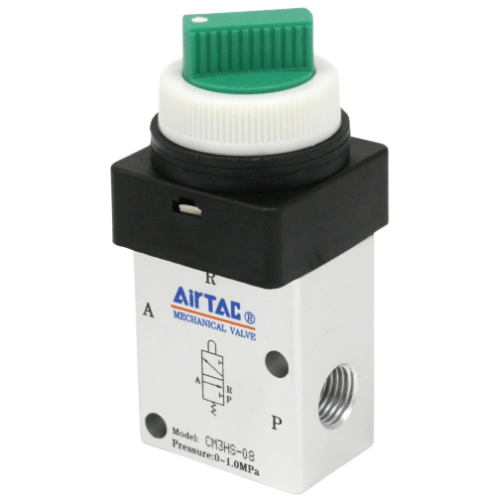

Airtac CM3HS Selector Mechanical Valve CM3HS06Y
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS Series Selector Mechanical Valve CM3HS06Y Technical Details
- Model: CM3HS06Y (Selector Type)
- Valve type: 3-position selector valve with manual override
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port thread: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15-0.8 MPa (21.7-116 PSI)
- Proof pressure: 1.2 MPa max
- Voltage variants: DC12V/24V, AC110V/220V (solenoid optional)
- Weight: 280g ±5% (without fittings)
- Dimensions: 55mm(L) × 35mm(W) × 80mm(H)
- Seal material: HNBR (Hydrogenated Nitrile) for high temp resistance
- Ambient temperature: -20℃ to +80℃ (non-freezing)
- Flow capacity: Cv=0.32 (200 l/min at 0.5 MPa)
- Response time: ≤50ms (at rated voltage)
- Protection class: IP67 (dustproof & temporary immersion)
- Manual operation: 90° lever rotation with position lock
Industrial-grade selector valve featuring dual manual/electrical control modes. Precision-machined brass body with chrome-plated steel lever mechanism ensures 500,000+ cycle durability. Integrated surge suppression protects coil windings. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Production line mode switching stations
- Hydraulic system pilot control circuits
- Emergency override systems in material handling
- Multi-process textile machinery
- Test bench pneumatic routing control
Installation guidelines:
Mount in vibration-free environment using M4 mounting screws.
Lubricate pivot points every 2,000 operating cycles.
Maintain ≥15mm clearance from electromagnetic interference sources.
| Property | Property Value |
|---|---|
| sku | CM3HS06Y |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
