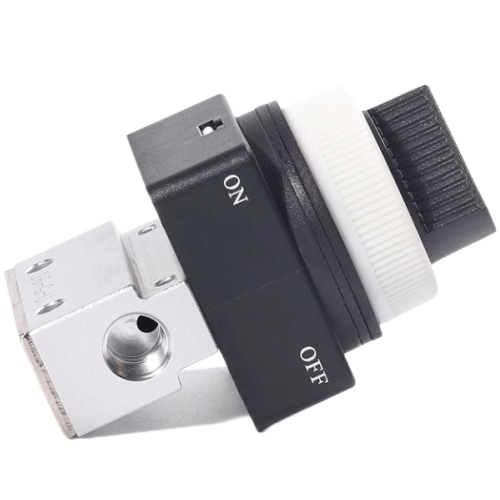

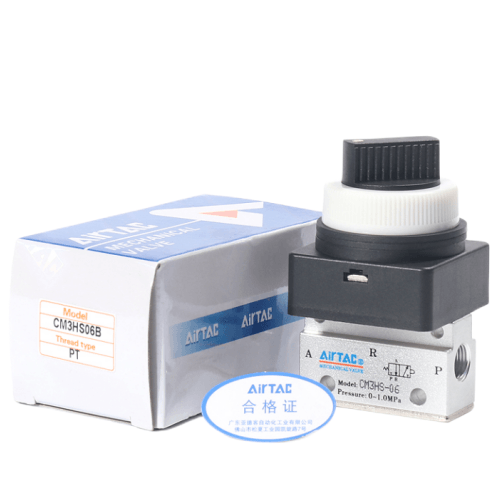

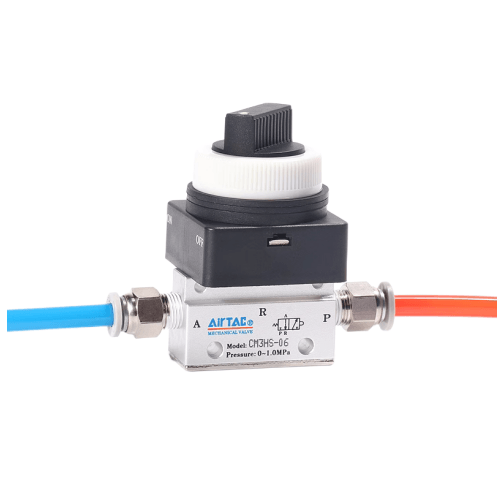

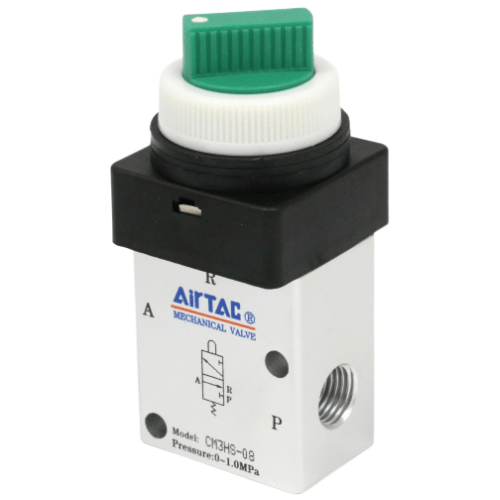

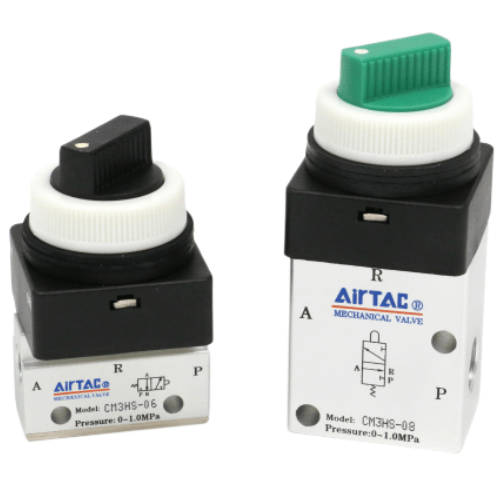

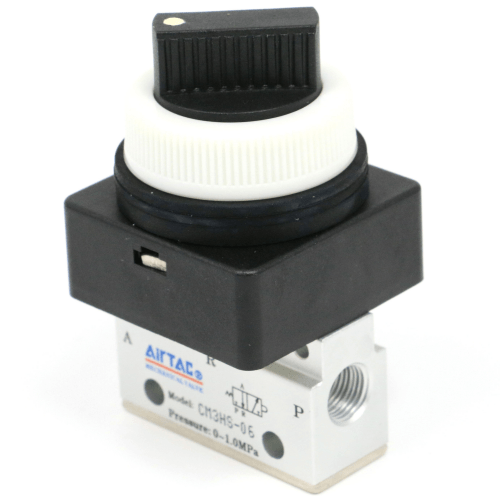

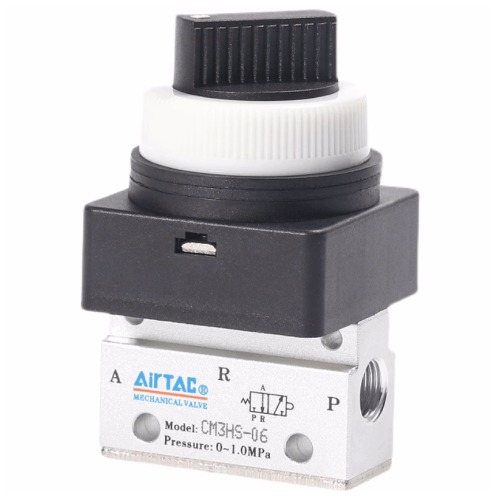

Airtac CM3HS Selector Mechanical Valve CM3HS08R
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for optimal adaptability in varied working conditions;
3. Poppet valve design ensures excellent sealing performance, smooth directional switching, and oil-free operation;
4. Multiple mounting orientations enable flexible installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for extended service life and enhanced reliability;
6. CM3PMS and CM3PMX series are equipped with metal protective covers to safeguard pushbuttons against accidental actuation and mechanical impacts, ensuring fail-safe operation.
Category: Mechanical Valves , Brand: Airtac , Series: CM3HS
AirTAC CM3HS08R Selector Mechanical Valve Technical Details
- Model: CM3HS08R (Rotary Lever Type)
- Type: 3-position selector valve with mid-exhaust
- Port configuration: 5 ports/3 positions
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 850 L/min (ANR)
- Actuation force: ≤30N lever operation
- Body material: Aluminum alloy surface anodized
- Seal material: HNBR with PTFE wear rings
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Weight: 220g ±5% (without accessories)
- Dimensions: 72mm(L) × 42mm(W) × 28mm(H)
- Mounting: Panel mount with M4 screw holes
- Compliance: RoHS compliant
Manual selector valve with positive center position exhaust, engineered for precise directional control in pneumatic circuits. Features dual-stage sealing system and anti-vibration lock mechanism. The chrome-plated lever offers 120° rotation arc with tactile position feedback. Requires ISO 8573-1 Class 3 lubricated or non-lubricated air.
- Production line mode selection systems
- Plastic injection molding machine controls
- Textile machinery pneumatic sequencing
- Semiconductor handling equipment
- Test bench pneumatic circuit configuration
Installation guidelines:
Mount in accessible location with lever movement clearance.
Use locking pliers during tubing connection to prevent body rotation.
Perform monthly lever pivot lubrication with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3HS08R |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
